* Screw torque:
0.8 N•m
If the warning "Fan Fail- Internal F01" show on the DSS / APP, please follow
the procedure below to remove Internal Fan 1.
(1) Remove the B cover.(Figure 5-12)
(2) Disconnect the power connector on the LED board.(Figure 5-12)
(3) Loose two self-retaining screws and remove the fan cabinet. (Figure 5-13)
(4) Lift the entire fan assembly. (Figure 5-14)
(5) Clean assembly or replace with a new fan.
(6) Reassemble by using 0.8 N•m tightening torque.
5.3.3 Internal Fan 1

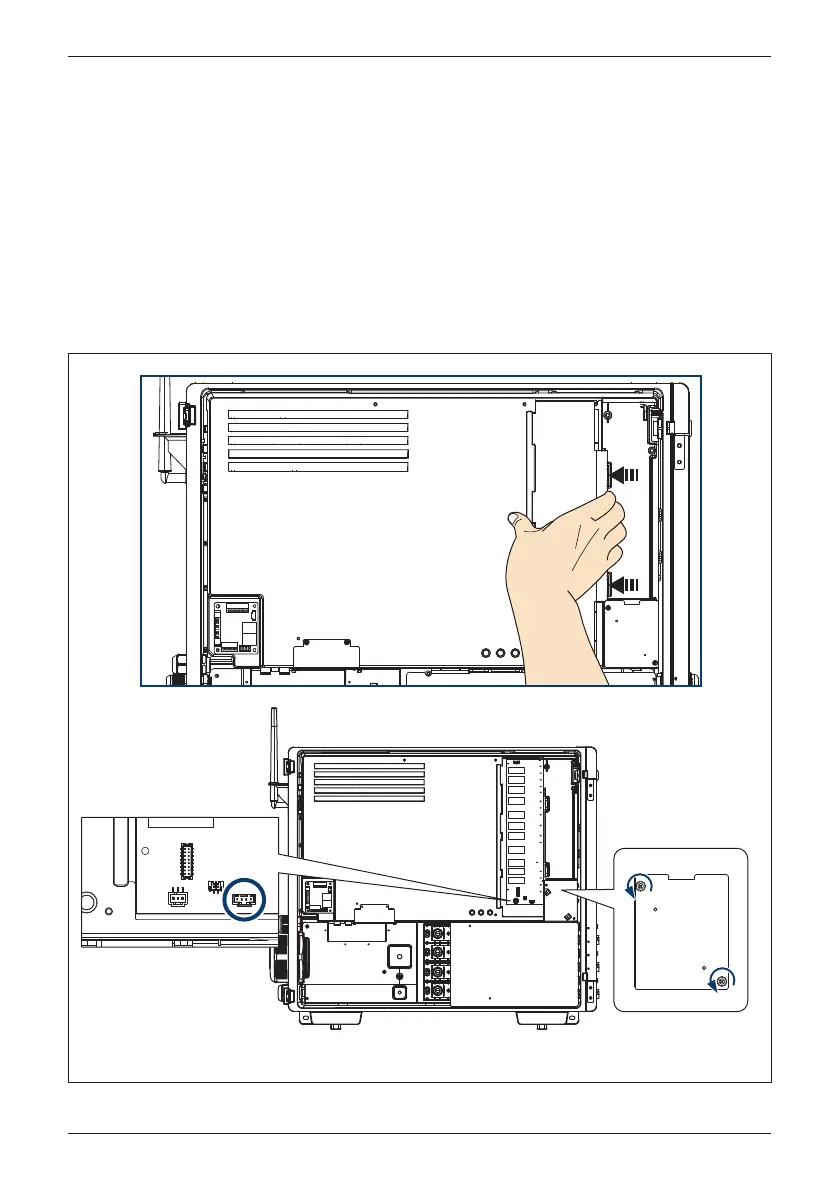

Figure 5-12: Internal fan 1 location & remove the shield cover
B
Fan connector
68
Maintenance
