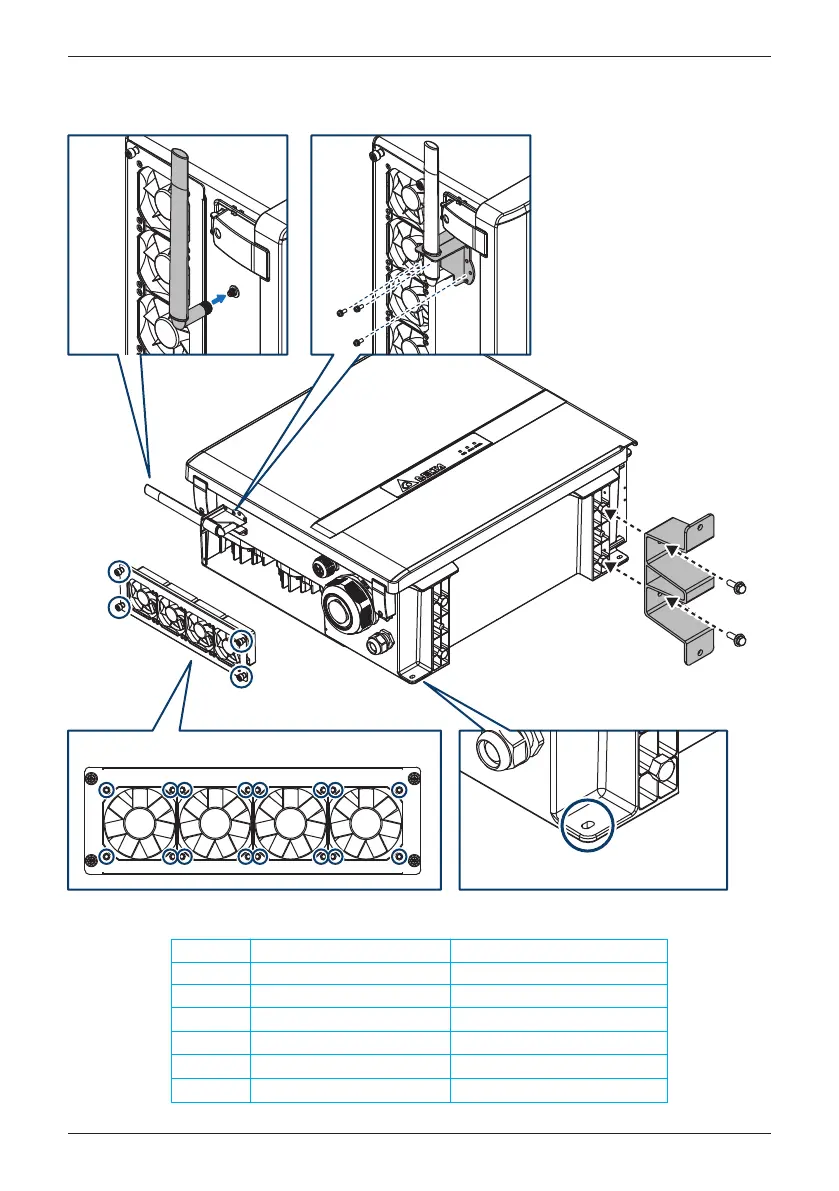

Appendix: Assembly Note
NO Location Screw torque
2 Fan Tray
6 kgf-cm (0.6N•m)
1 Filter
14 kgf-cm (1.4N•m)
3 Antenna
4 Antenna Bracket (M4)
12 kgf-cm (1.2N•m)
6 Grounding (M8)
102 kgf-cm (10N•m)
10 kgf-cm (0.98N•m)
Grounded Bracket
250 kgf-cm (24.5N•m)
5
Appendix-1: Assembly Note-1
