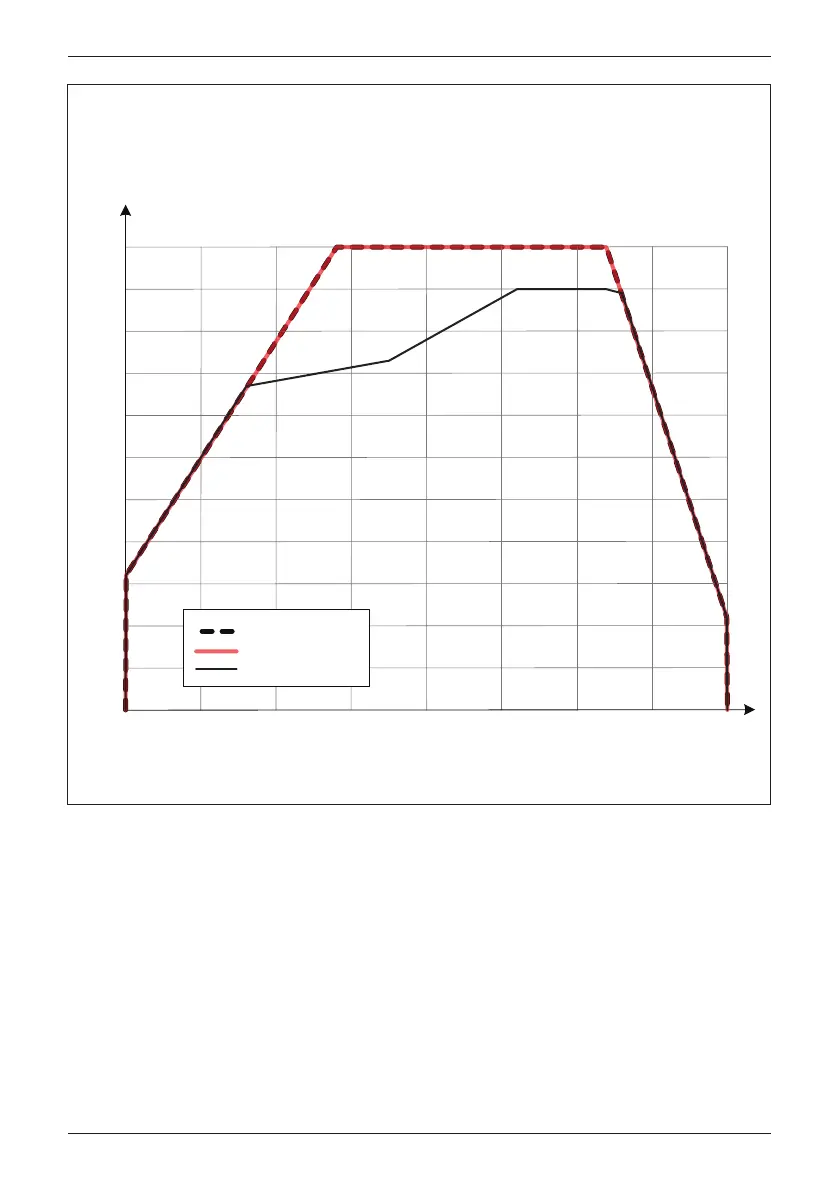

Figure 7-7: Power De-rating Curves with PV Voltage (480 Vac)
Output Power (kW)
Pn=100kW
Power De-rating Curves with PV Voltage
Output voltage at 480Vac
PF=1
500
200
300 400
600 700 800 900 1000
50
40
30
60
70
80
90
100
110
20
10
0
Input DC Voltage (V)
@ Ambient 30°C
@ Ambient 40°C
@ Ambient 50°C
