Refer to Figure 3-4 through Figure 3-8.
1. Ensure the surface to which the unit is to be mounted is sufficiently strong
enough to carry the weight.
2. Orient the wall bracket (Figure 3-5) horizontally (perpendicular to the floor).
3. Secure the mounting bracket on the wall with 12 M6 screws.(Figure 3-6)
4. Hang the inverter on the wall mounting bracket.
5. Two external grounding points can help to fix the inverter by 2 M8 screws.
3.2.1 Wall Mount
- The mounting bracket shipped with the unit is specially designed and is the only
certified mounting device for mounting the inverter.
- Secure the mounting bracket on the wall with at least 8 M6 screws.
CAUTION !

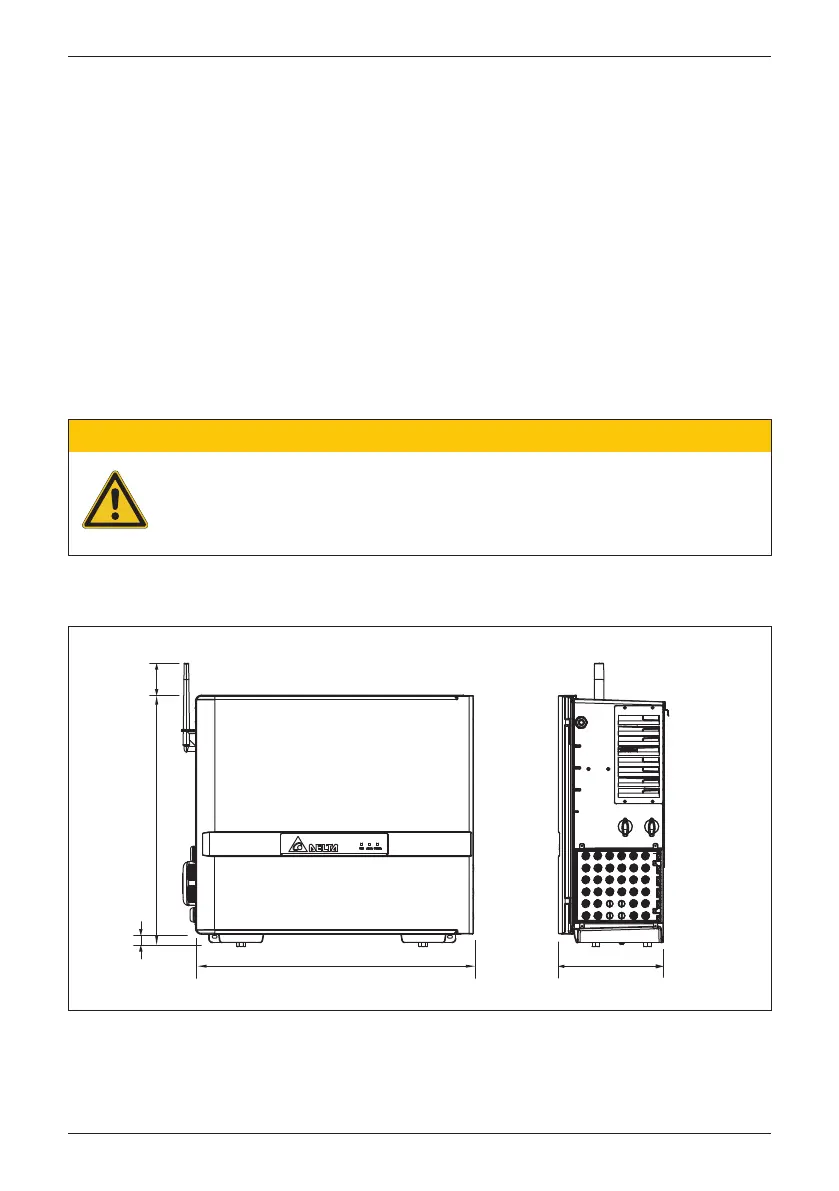

Figure 3-4: Inverter dimensions
629 mm 80 mm
22.4 mm
699 mm 264 mm
20
Installation
