5.2 Replacement of Surge Protection Devices (SPD)
The inverter has the surge protection device (SPD) at both AC and DC side,
the location of both AC and DC SPD is shown below.
DC
SPD
DC SPD
AC SPD
AC SPD

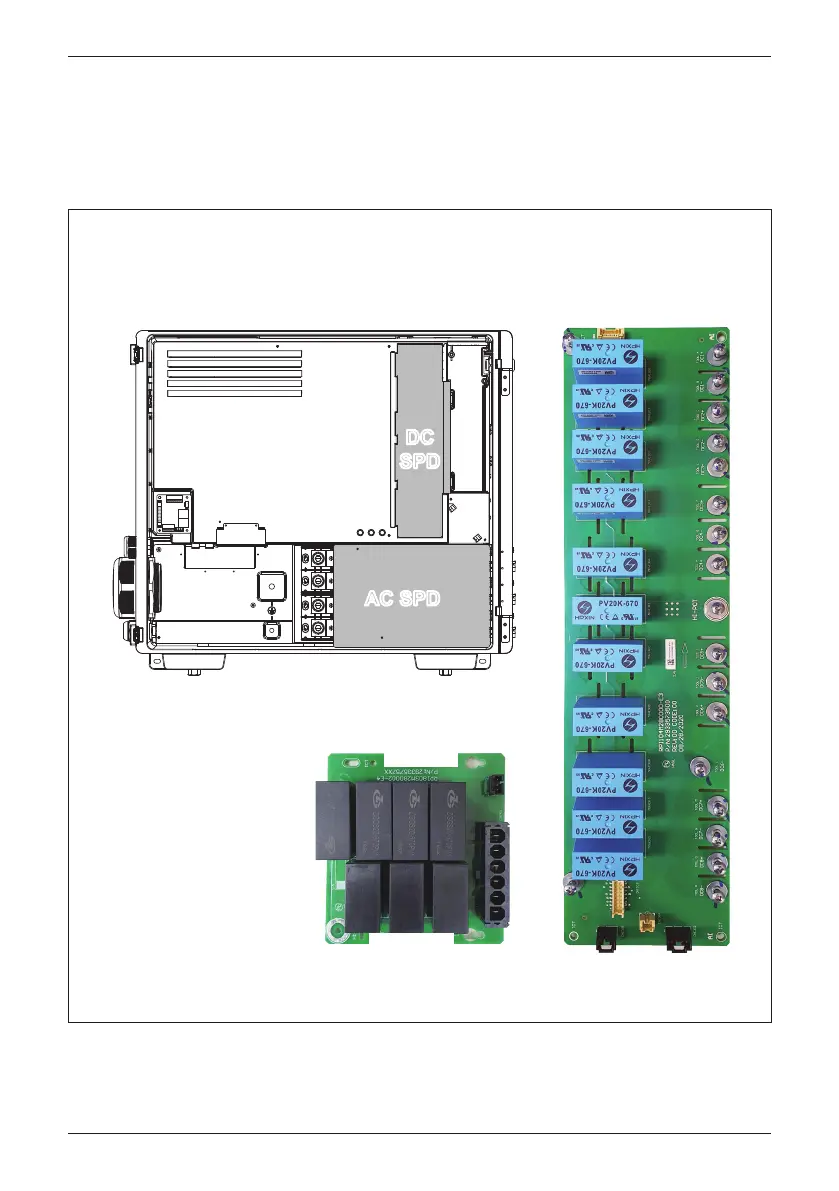

Figure 5-5: SPD modules
60
Maintenance
