Accessories DC connectors (Table 2-1-
⑦
), are genuine parts that are certified
the quality and reliable from DELTA. Please follow the below requirements to
choose the DC cable and crimp.
- DC cable must choose the cooper conductor which insulation is above 1000V
withstands voltage.
- Acceptable cross-section range of the conductor is 4.0mm²~6.0mm².
Please follow the standard of the PV system installation to choose a suitable
cross-section.
- Recommend crimping is by using Amphenol special tool (H4TC0002)
- If accessories DC connectors are in shortage or have other application issues,
please contact DELTA Service Center for help.

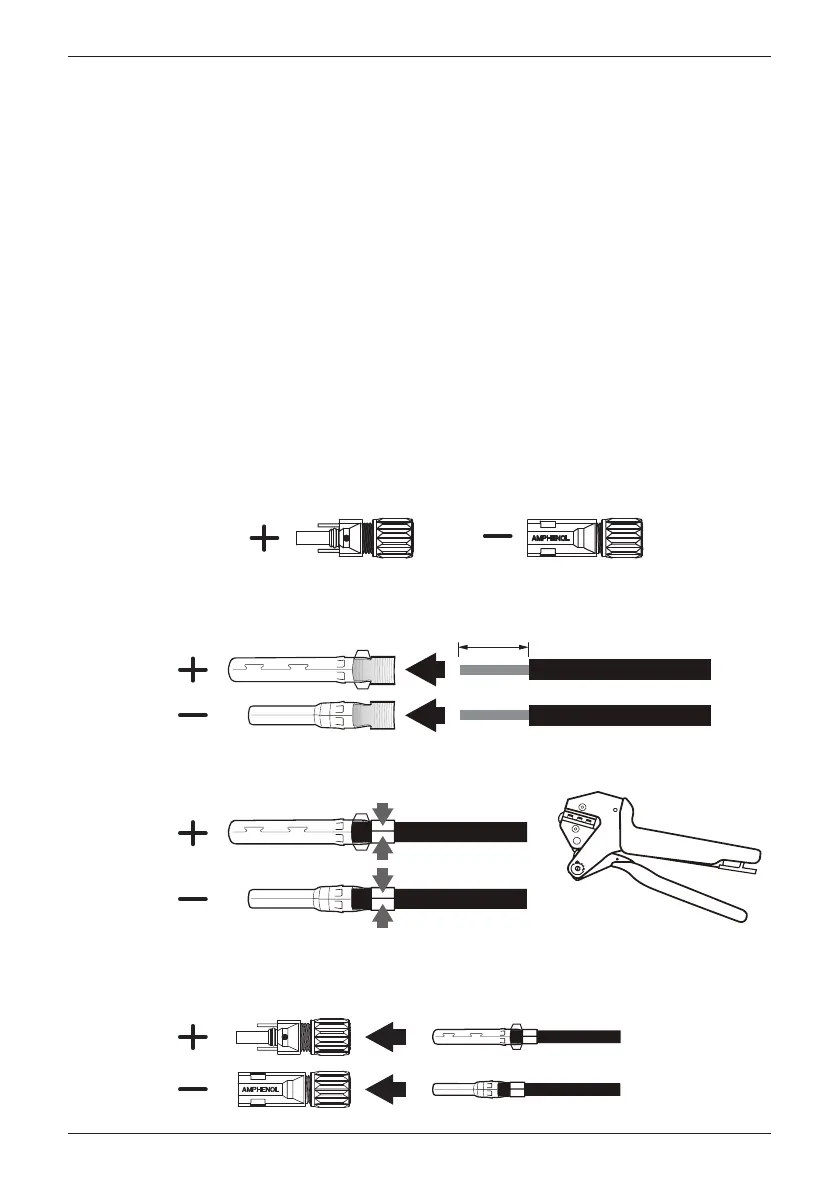

(1) Male connector with Socket Type terminal is for Positive side.
Female connector with Pin Type terminal is for Negative side.
(2) Strip off the cable insulation around 6.5 ~ 7.5 mm length, neat the conductor,
then put it into its belong terminal hole well.
(3) Put them into the stopper of the Amphenol crimping tool(H4TC0002), then
crimp to fix.
(4) Connect the terminal and its belonging connector. The terminal will be
locked if well assembling. Fasten the cap with 2.6 ~ 2.9 N.m force for
the waterproof.
“CLICK”
3.5.1 Preparation for DC Wires Connection
3.5.2 Assemble DC connectors
6.5
~
7.5 mm
37
Installation
