3.2.2 Ground Mount (Optional)
Grounded Bracket kit is an optional part, please contact the customer service
center for the detail.
1. Fix the grounded brackets to the bottom of the inverter as Figure 3-9.
2. Mount the inverter with grounded brackets to the ground-mounting base by
4 expansion bolts. (Figure 3-10)

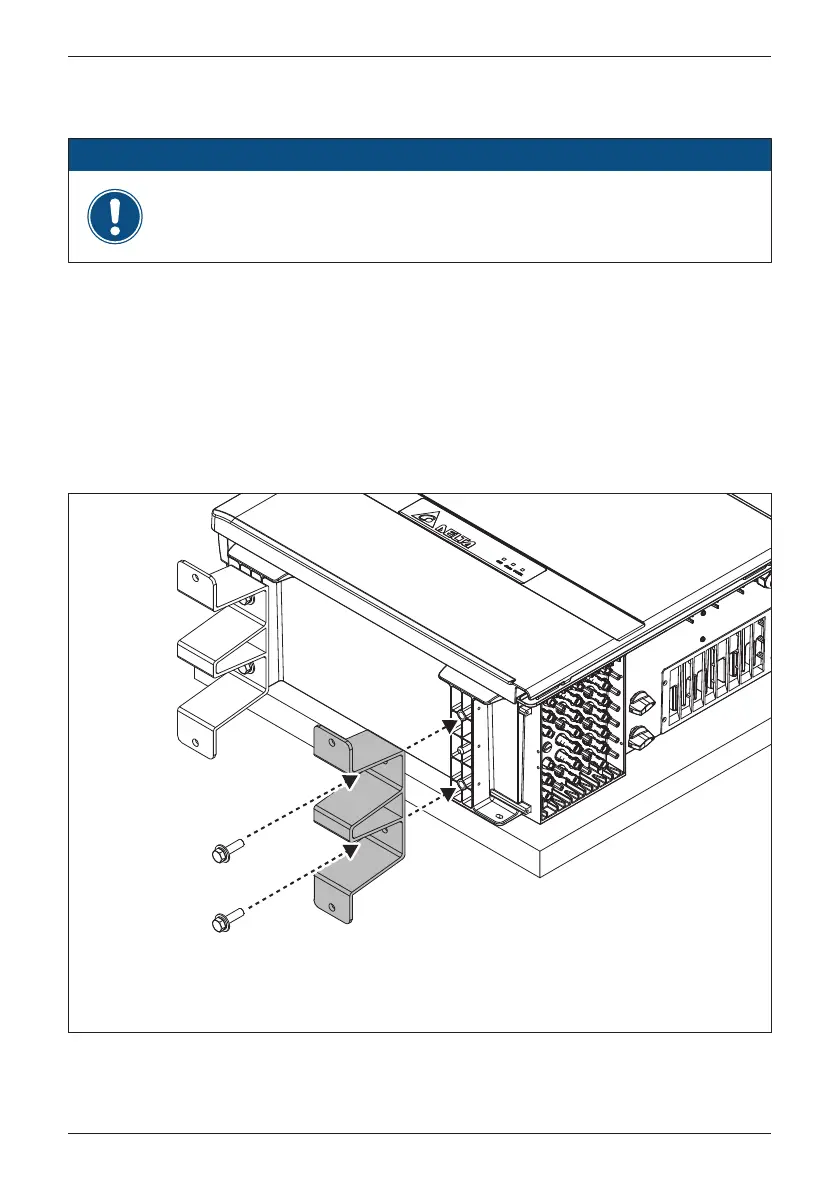

Figure 3-9 : Lock the grounded brackets to feet
* Screw torque required for assembling: M12/ 24.5 N•m
- Ensure the grounded base is strong enough to hold the weight of the inverter.
ATTENTION
25
Installation
