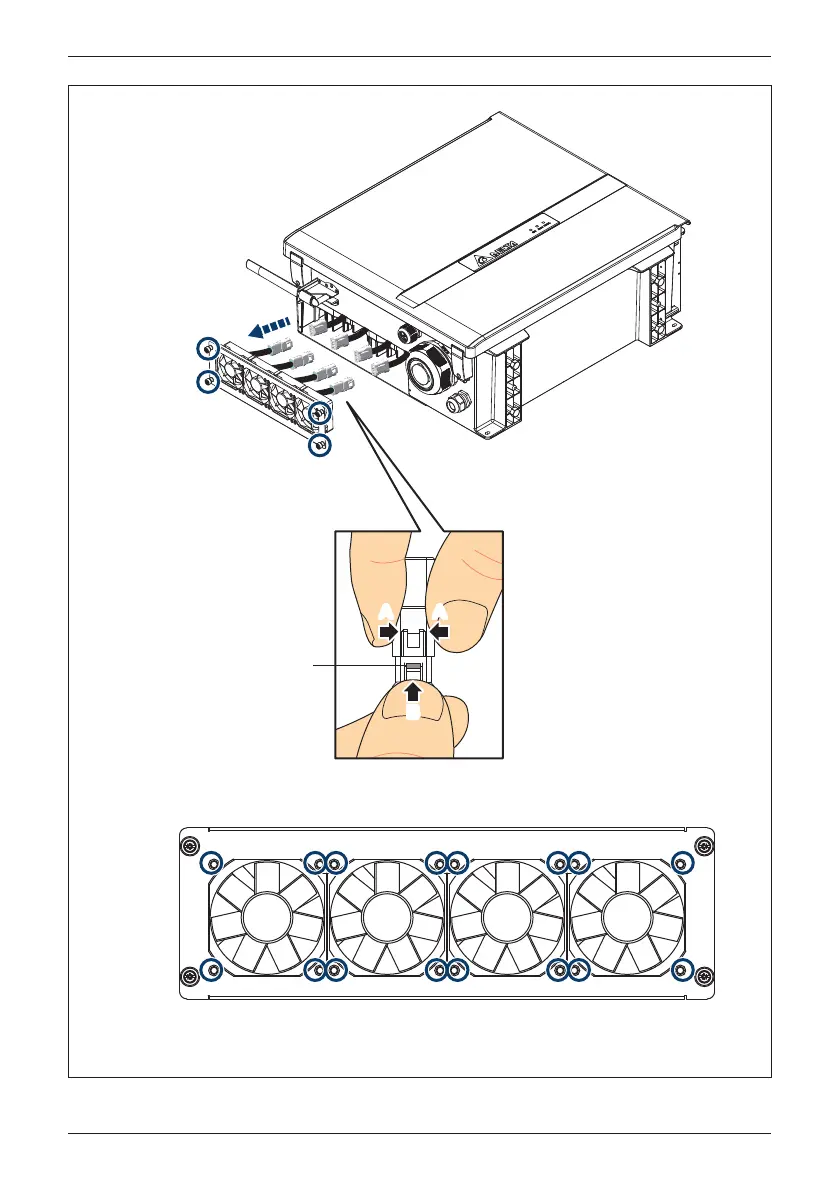

Figure 5-11: Disassembling fan tray from PM chassis
①
②
* Screw torque required for assembling: 0.6 N•m
* Screw torque required for assembling:
1.4 N•m
③
snap-fit
A A
B
A A
B
67
Maintenance
