- Please refer to PPM DC1_100 Installation Manual.
https://mydeltasolar.deltaww.com/?p=product_manual
> Data Collector > PPM DC1_100
ATTENTION
1. Remove the screws on the case and turn the antenna counterclockwise by
about 45 degrees.
2. Put on the antenna bracket.
3. Turn the antenna to the proper position.
4. Tighten the 3 screws in the antenna package to the antenna bracket.

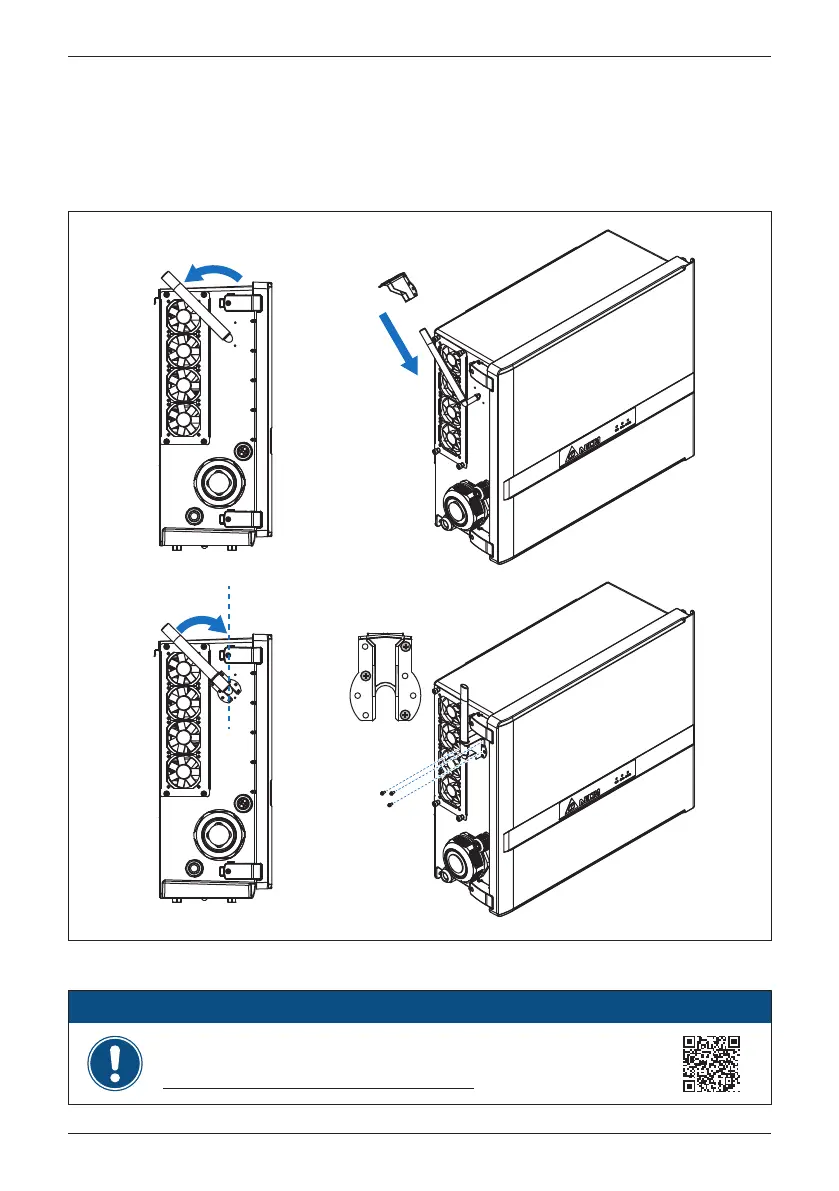

Figure 3-20: Install antenna bracket
* Screw torque: M4 / 0.98 N•m
① ②
③ ④
Screw
locations
42
Installation
