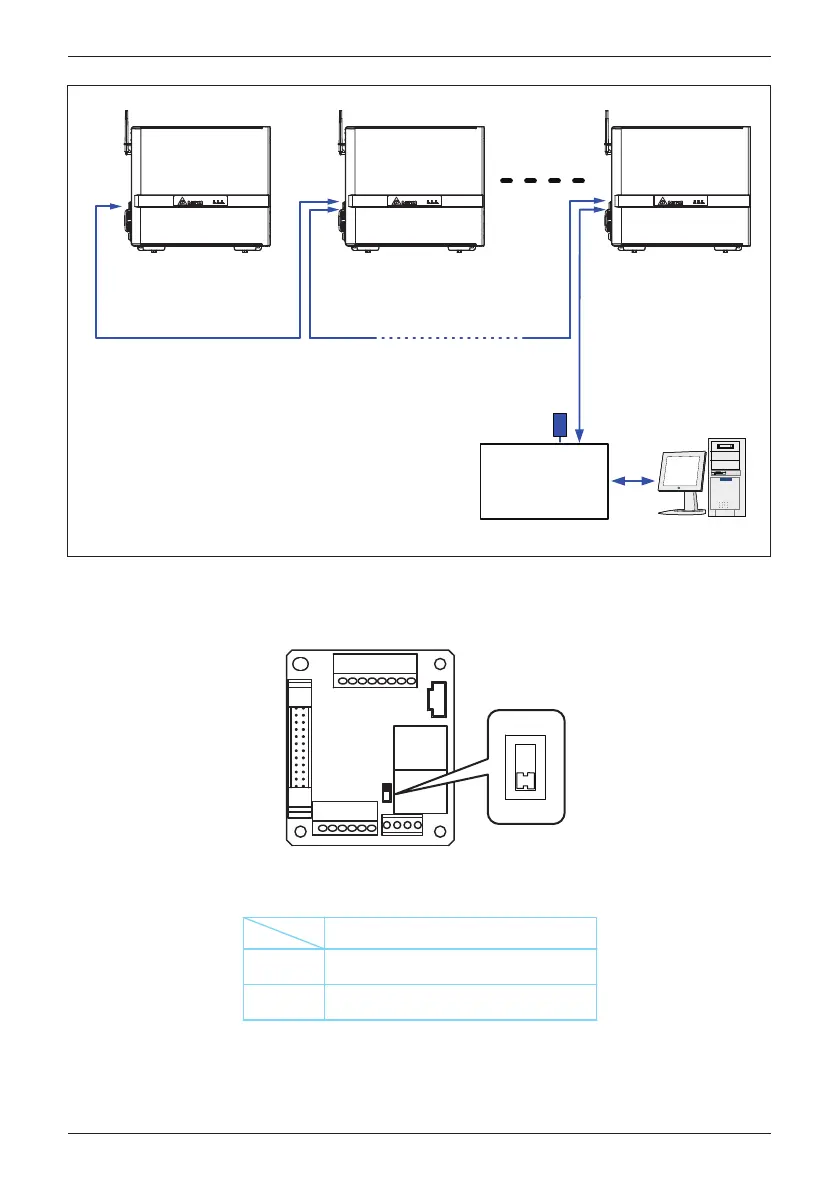

Figure 3-23: Multiinverter connection illustration
Table 3-8: Bus Termination switch settings
Switch 1
Terminal Resistor ON
Terminal Resistor OFF
OFF
ON
Termination
switch
OFF
ON
RS485/USB
or
RS485/RS232
Terminal Resistor
120Ω(1/2W)
DATA+ to DATA-
