Delta RPI Series User Manual

L1
L2
L3
N
PE
D1
D2
D3

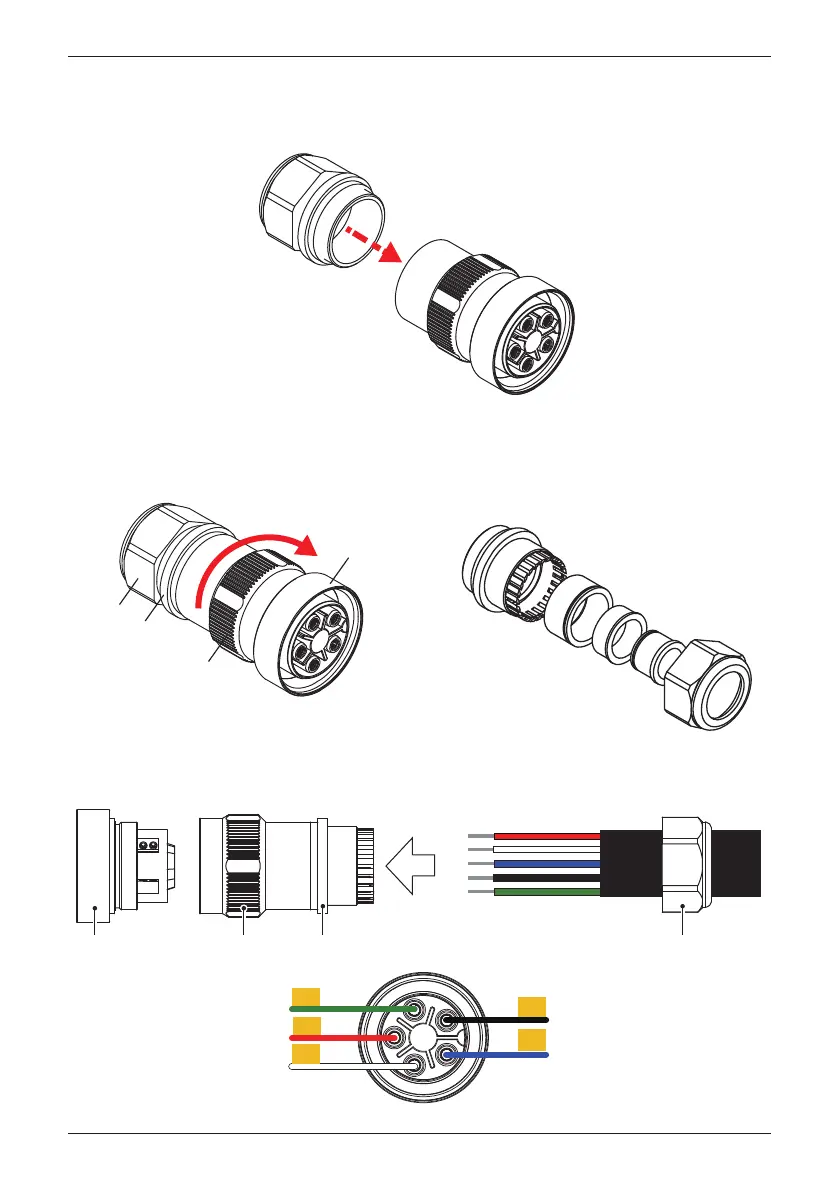

2. Fix Part A of the AC plug, then turn
part B to separate Part A and B.
3. Fix Part B ,then turn part D to separate
Part B and D. Refer to Table 4-4 to take
out Part C.
Choose the appropriate rubber ring.
4. Insert the internal wire into AC plug.
L1
L2
N
PE
L3
A
B
C
C
D
D
1.The packing has the parts of AC Plug, please follow the step to assemble the AC plug
first. The fastening torque range is 55kgf-cm~75kgf-cm.
A B C D
25
Wiring
