Precaution
3-8 ineo 163/213

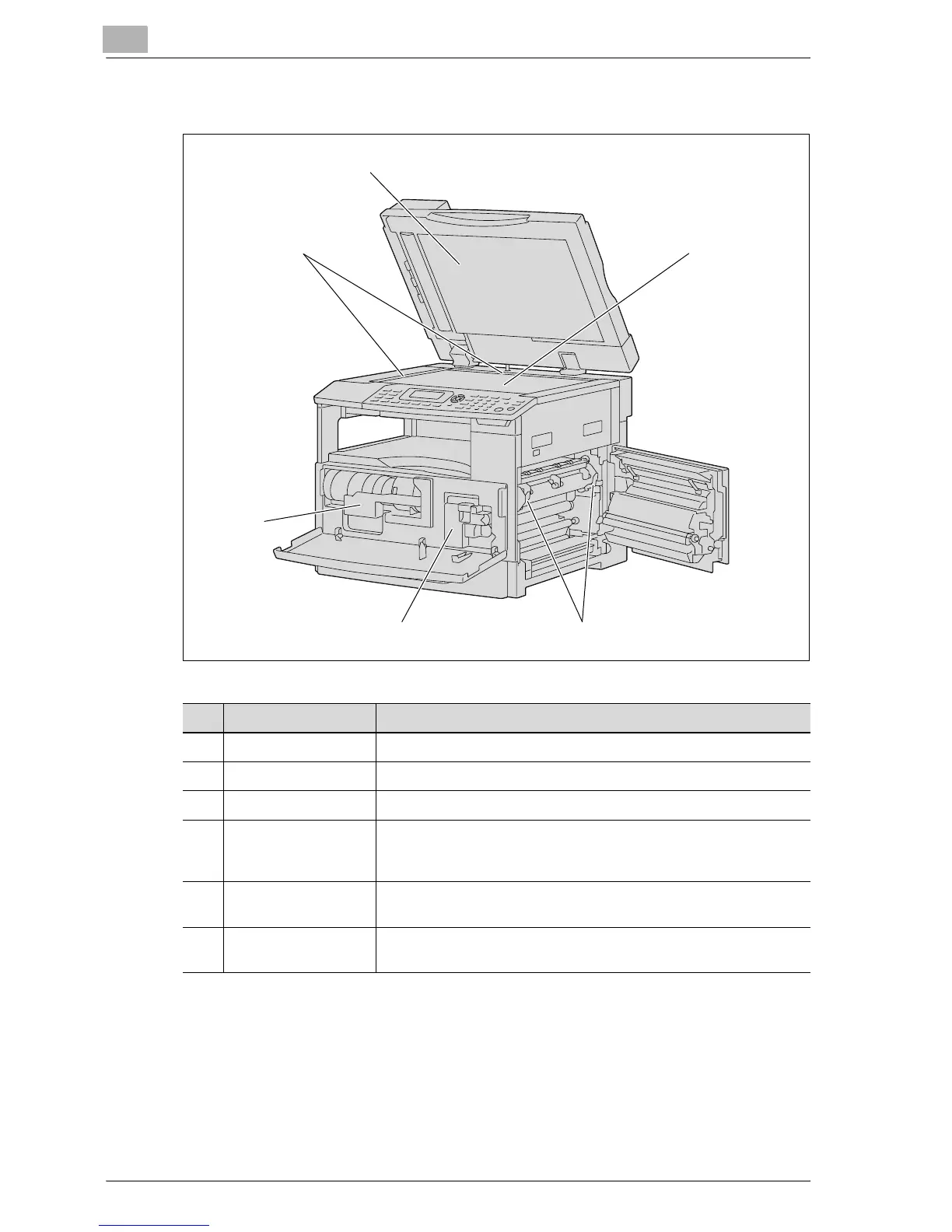

Inside of machine
1
2
3
45
6
No. Part name Description
1 Original cover Presses down on the document positioned on the original glass.
2 Document scales Used to align the document. (See p. 4-19.)
3 Toner bottle holder Opened when replacing the toner bottle.
4 PC drum unit Generates the copy image.
The PC drum unit should be replaced by a technical representa-
tive.
5 Fusing unit release
levers
Used when clearing paper misfeeds in the fusing unit. (See
p. 8-7.)
6 Original glass Position the document here so it can be scanned.
Place the document face down on the glass. (See p. 4-19.)
