Serial port Configure RealPort mode using the Digi Navigator
Digi Connect EZ Mini User Guide
155
Assign a generic IP address to the device
If the Connect EZ device is directly connected to a computer or connected to a network with no DHCP
server, you can assign a generic IPaddress to the device. Using this IPaddress requires you to set this
IP address on your computer as well as on the device.
Step 1: Assign a generic IPaddress to the device
1. Make sure Digi Navigator is installed and the Connect EZ is powered and connected to your
local network or computer with an Ethernet cable.
2. Launch the Digi Navigator.

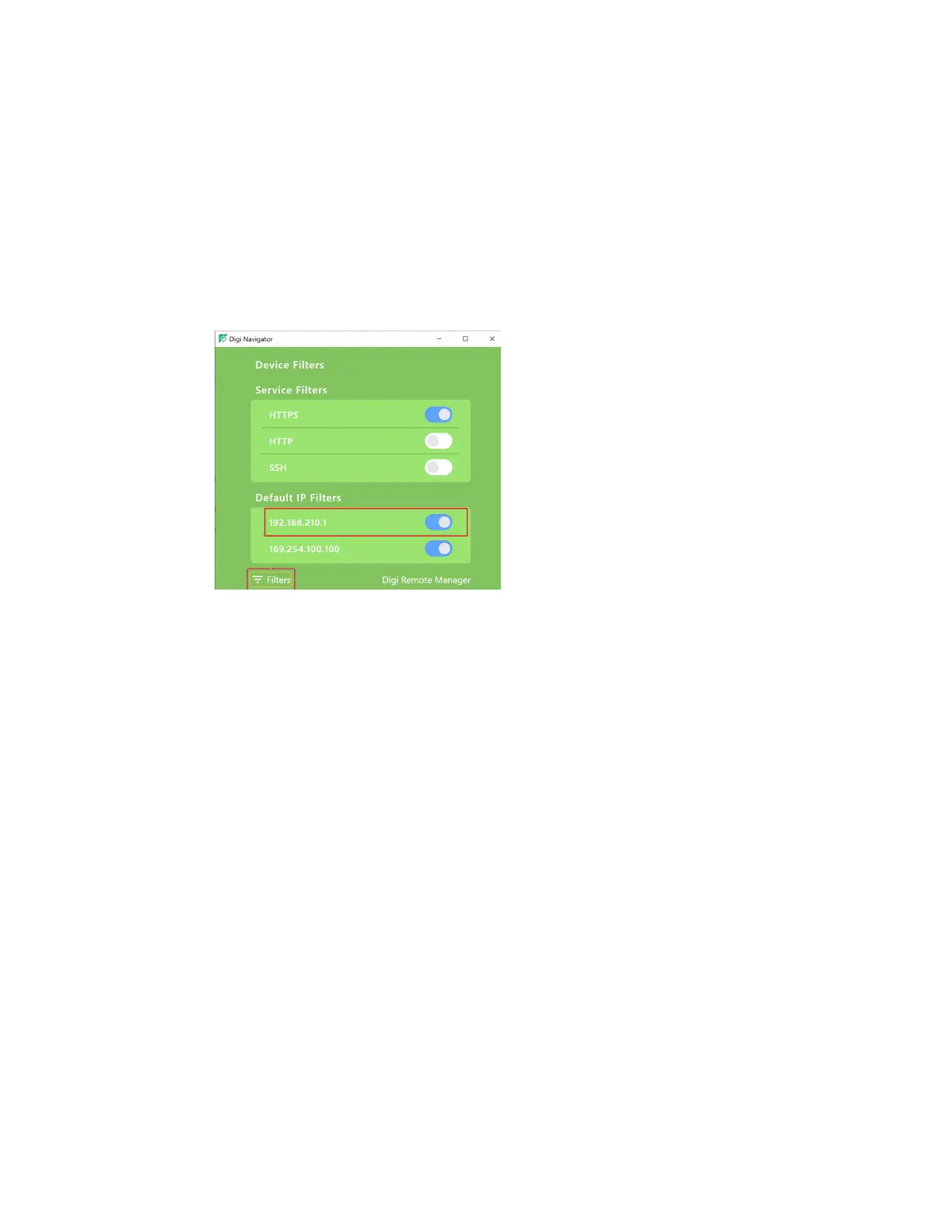

3. Click Filters from the green toolbar to expand the toolbar and display the filter options.
4. In the Default IP Filters section, click the enable button for the 192.168.210.1 option.
5. Click Filters at the bottom of the expanded toolbar to minimize the toolbar and hide the filters.
Step 2: Assign the IPaddress to your computer
You must also manually assign this IPaddress to your computer to ensure a connection. Both your
computer and device must be connected to a private network that does not have a DHCPserver.
1. Use an Ethernet cable to connect the device and your computer. Both your computer and
device must be connected to your private network.
2. On your PC, navigate to the Ethernet network settings dialog.
3. Click the Internet Protocol Version 4 (TCP/IPv4) parameter.
