Network topologies
The device supports three different network topologies:
n Point-to-point
n Point-to-multipoint
n Peer-to-peer
Point-to-point networks
This following section provides the RF communication type and RF mode for point-to-point networks.
Definition

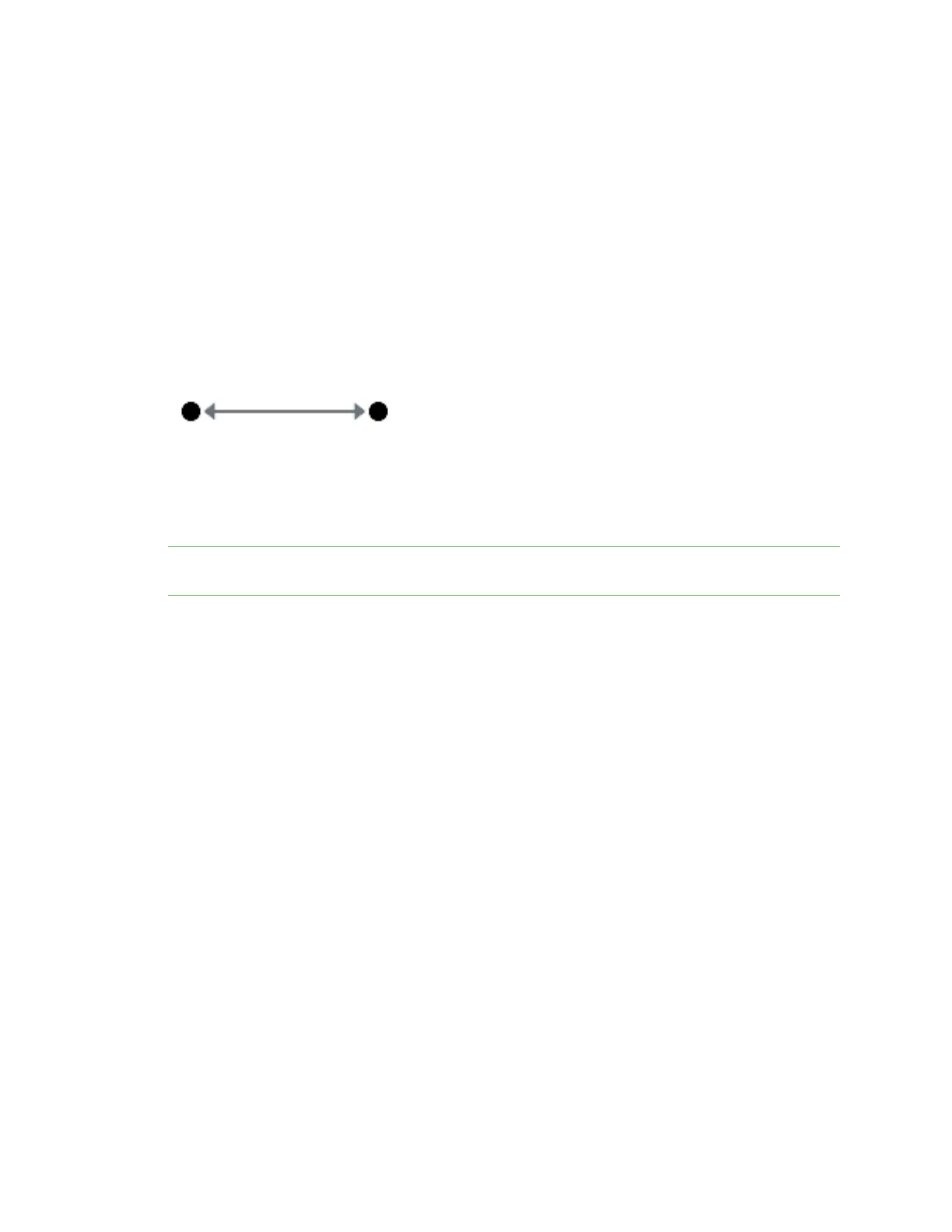

Point-to-point means that an RF data link exists between two devices.
Sample network profile (Broadcast communications)
Use default values for all devices.
Sample network profile (Acknowledged communications)
Note Assume default values for all parameters that are not in this list. These profiles do not reflect
addressing implementations.
1. Use XCTU or an alternative terminal program to send the AM command. See AM (Auto-set MY)
for details.
2. Set the destination address to 0xFFFF, send: DT FFFF
Basic RF modes
Streaming, Multi-Transmit, Repeater.
Acknowledged RF mode
Acknowledged mode.
Point-to-multipoint networks
This following section provides the RF communication type and RF mode for point-to-multipoint
networks.
Definition
Point-to-multipoint refers to a network with RF data links between one base and multiple remotes.
