Digitronic Digital Cam Switch Unit
Automationsanlagen GmbH CamCon DC50/51
4. Electrical connections
4.1. Pin allocation of the CamCon
CamCon

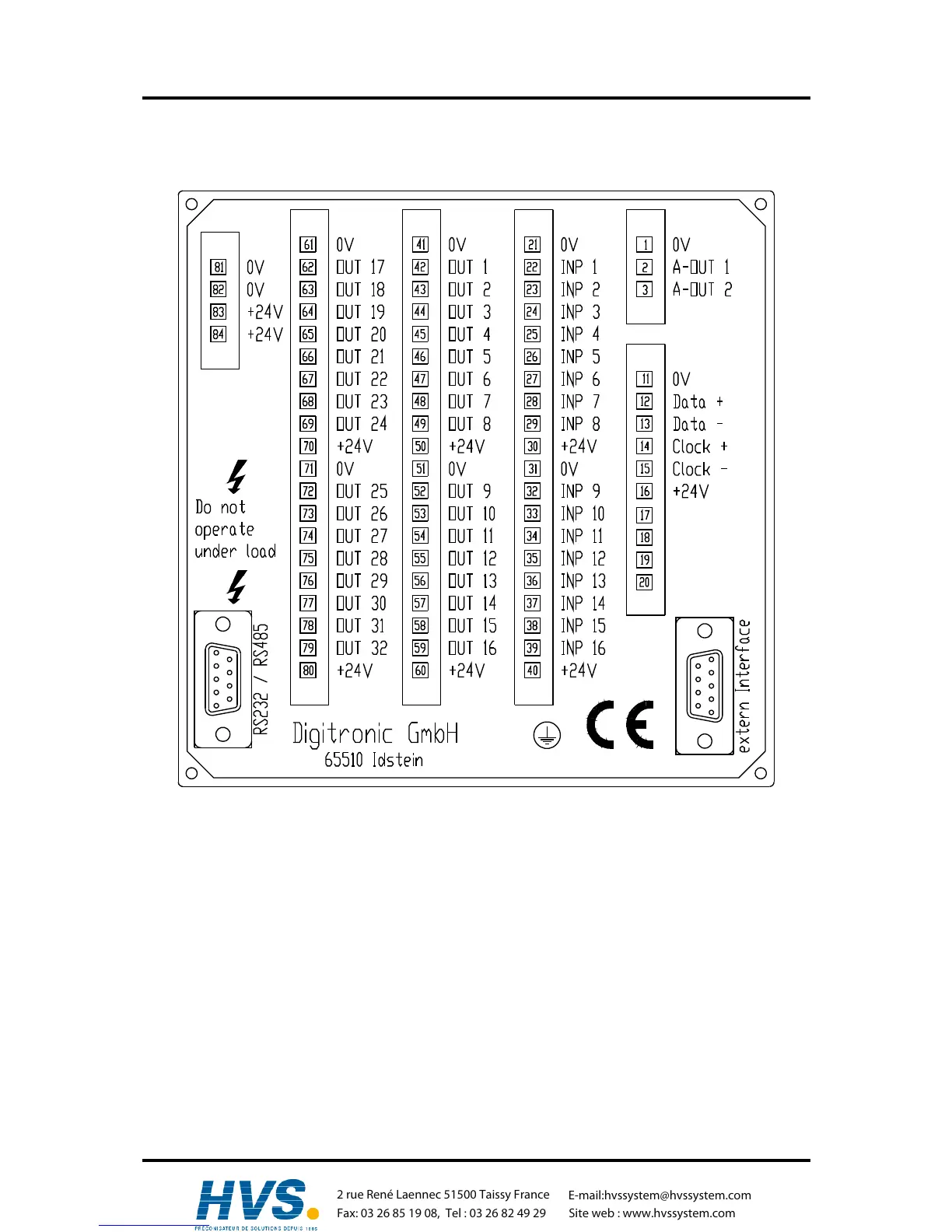

Fig.: Backview of the CamCon with pin allocation
4.1.1. Pin allocation of the analog output
Pin 1: 0V signal mass for the analog output
Pin 2: Analog output 1
Pin 3: Analog output 2
4.1.2. Pin allocation of the SSI measuring system
Pin 11: 0V voltage supply for the SSI measuring system (encoder)
Pin 12: Data A or +
Pin 13: Data B or -
Pin 14: Clock A or +
Pin 15: Clock B or -
Pin 16: +24V DC voltage supply for the SSI measuring system (encoder)
,Version from: Aug. 04 Page: 15
