Digitronic Digital Cam Switch Unit
Automationsanlagen GmbH CamCon DC50/51
4.2.3.3. Incremental Hiperface measuring system input with SINCOS level
The Hiperface measuring system is a feedback system for servo-motors of the company Stegmann.
It is a mixed system and consists of an absolute measuring system and an incremental measuring
system. The absolute measuring system sends its values via RS485 interface to the counter. The
incremental measuring system works with analog sine - and cosine interface with a resolution of 512 or
1024 impulses per revolution.

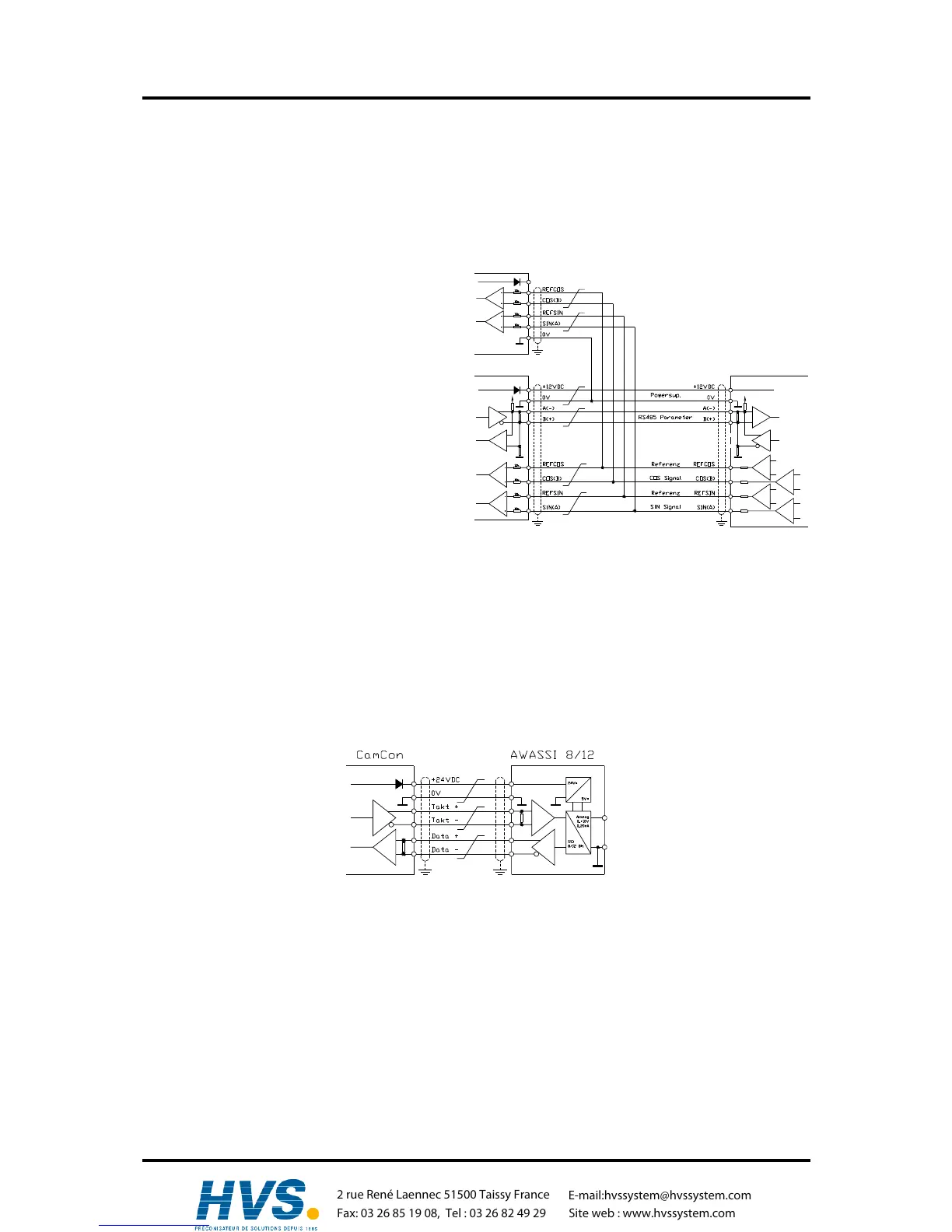

The CamCon with the Hiperface signal input
(option: H) reads only the incremental sine - and
cosine signal. The signals are converted and
counted in the CamCon into normal incremental
measuring system signals.
controller SINCOS
Since the absolute measuring system of the
Hiperface interface is not used and no clear -
signals are available, the CamCon must be
initialized after each restart.
This must be done by the preset input of the
CamCon. See for this to chapter 7.4.2.4. Actual
position preset on page 56.
Note: The maximum number of
revolutions per minute is 3000 min
-1
with 512 Impulse per revolution.
The maximum number of revolutions per minute is 1500 min
-1
with 1024 Impulse per
revolution.
4.2.4. Analog measuring system input
These are systems which receive their actual value through conversion of current or voltage signal,
such as temperature or pressure sensors.
For the recording of analog signals the analog to SSI conversion module AWA/SSI in 8 and 12 bit
resolution is available for the CamCon. This module is connected to the SSI of the CamCon and is
switched ON through the selection of the analog measuring system in the menu ”Measuring system”.
,Version from: Aug. 04 Page: 22
