7.3.16. Examples for cam programming
.
7.3.16.1. First cam programming

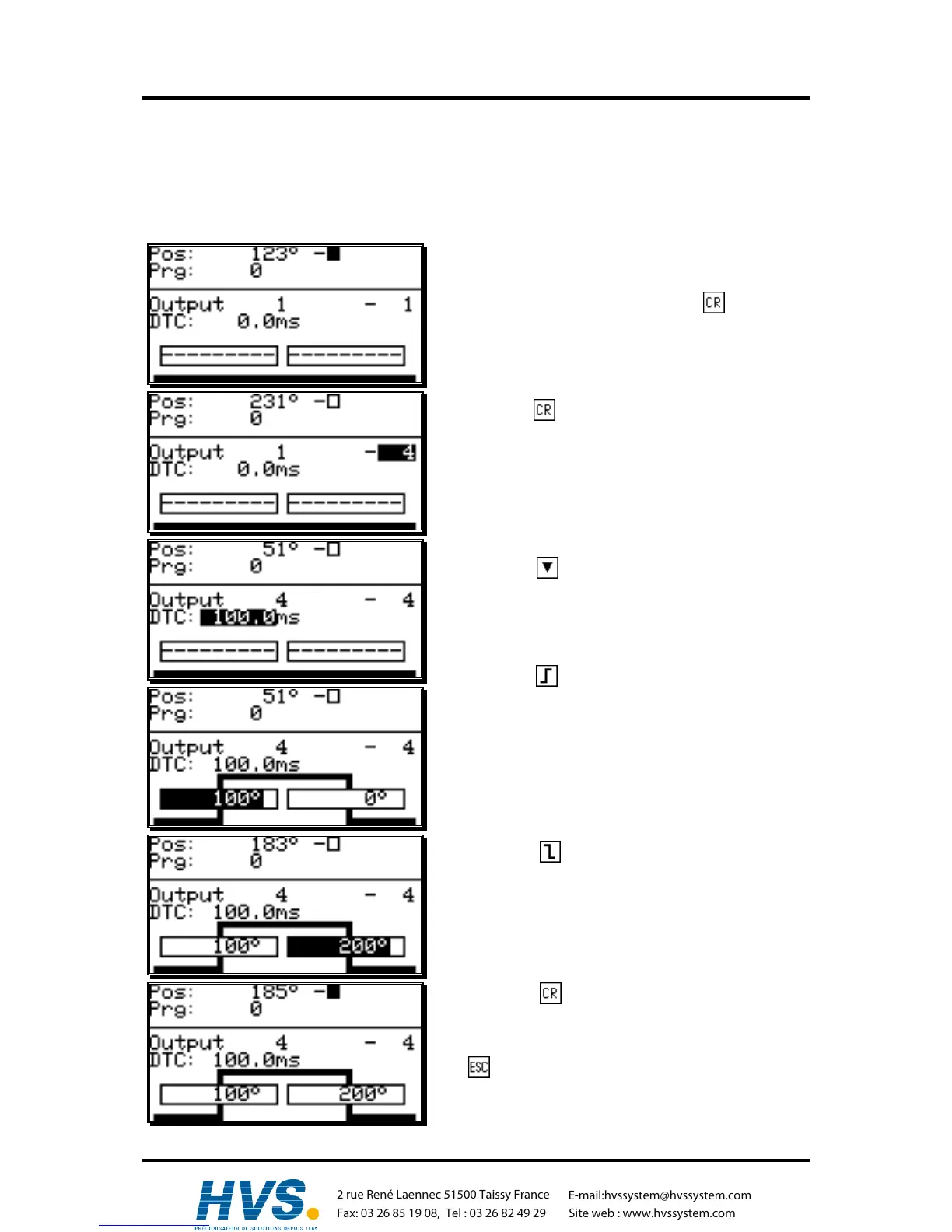

Task: After a complete deletion of the program memory and a successful initialization of the system, a
cam shall be programmed for output 4 from 100° to 200° with a speed compensation of 100ms
Solution:
1. Choose the main menu point "Programming".
2. Enter your user code and press the key, to have
the programming menu displayed.
3. Press the key and enter "4".
4. Press the key, the cursor moves to the field for
speed compensation.
5. Enter the value "1000" with the numeric keys.
6. Press the key to enter the cam activation point.
The cursor moves to the input field for the cam
activation point. Simultaneously, a stylized cam
starts blinking.
7. Enter the value "100" for the cam activation point
with the numeric keys.
8. Press the key. The cursor moves to the input
field for the cam deactivation point.
9. Enter the value "200" for the cam deactivation point
with the numeric keys.
10.Press the key to confirm your input. The first
cam is now programmed.
11.You can leave this menu any time by pressing the
key.
