Digitronic Digital Cam Switch Unit
Automationsanlagen GmbH CamCon DC50/51

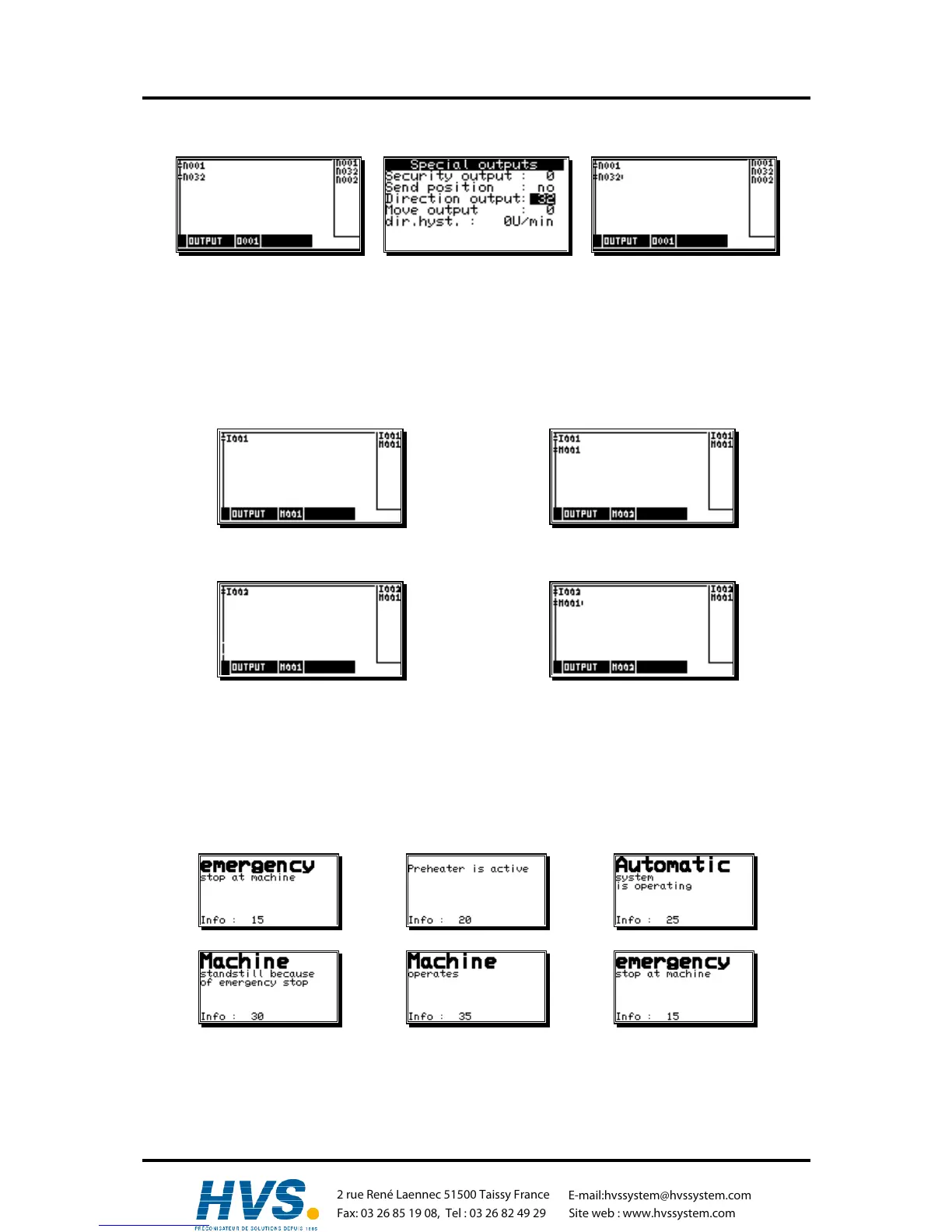

Example 2: Output depending on the rotation direction.
Output 1 of the CamCon is Output 1 of the CamCon is
enabled when the rotation enabled when the rotation
direction output 32 direction output 32
is active. is not active.
This is the case when the direction This is the case when the direction
of the rotation is positive. of the rotation is negative.
Example 3: Flank assessment.
Register 2 is activated for one cycle when the signal at input 1 changes from 0 to 1.
Register 2 is activated for one cycle when the signal at input 2 changes from 1 to 0.
7.5.3.2.2. PLC Logic Module with text display
Available with the PLC Logic Module is a text display you can use to show and describe the different
states of your machine.
Example:
,Version from: Aug. 04 Page: 71
