60
160XT 180XT 210XT

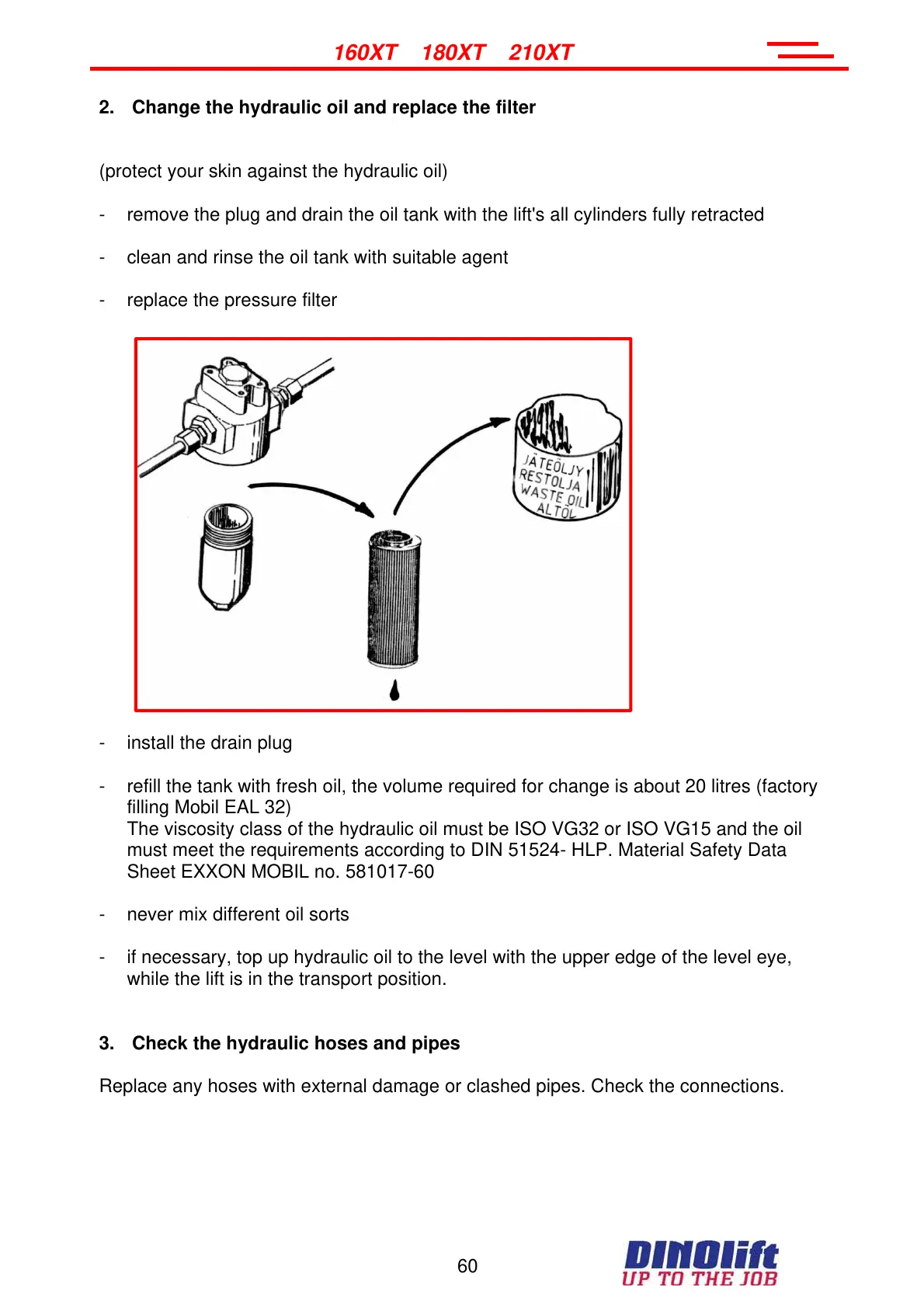

2. Change the hydraulic oil and replace the filter
(protect your skin against the hydraulic oil)
- remove the plug and drain the oil tank with the lift's all cylinders fully retracted
- clean and rinse the oil tank with suitable agent
- replace the pressure filter
- install the drain plug
- refill the tank with fresh oil, the volume required for change is about 20 litres (factory
filling Mobil EAL 32)
The viscosity class of the hydraulic oil must be ISO VG32 or ISO VG15 and the oil
must meet the requirements according to DIN 51524- HLP. Material Safety Data
Sheet EXXON MOBIL no. 581017-60
- never mix different oil sorts
- if necessary, top up hydraulic oil to the level with the upper edge of the level eye,
while the lift is in the transport position.
3. Check the hydraulic hoses and pipes
Replace any hoses with external damage or clashed pipes. Check the connections.
