61
160XT 180XT 210XT

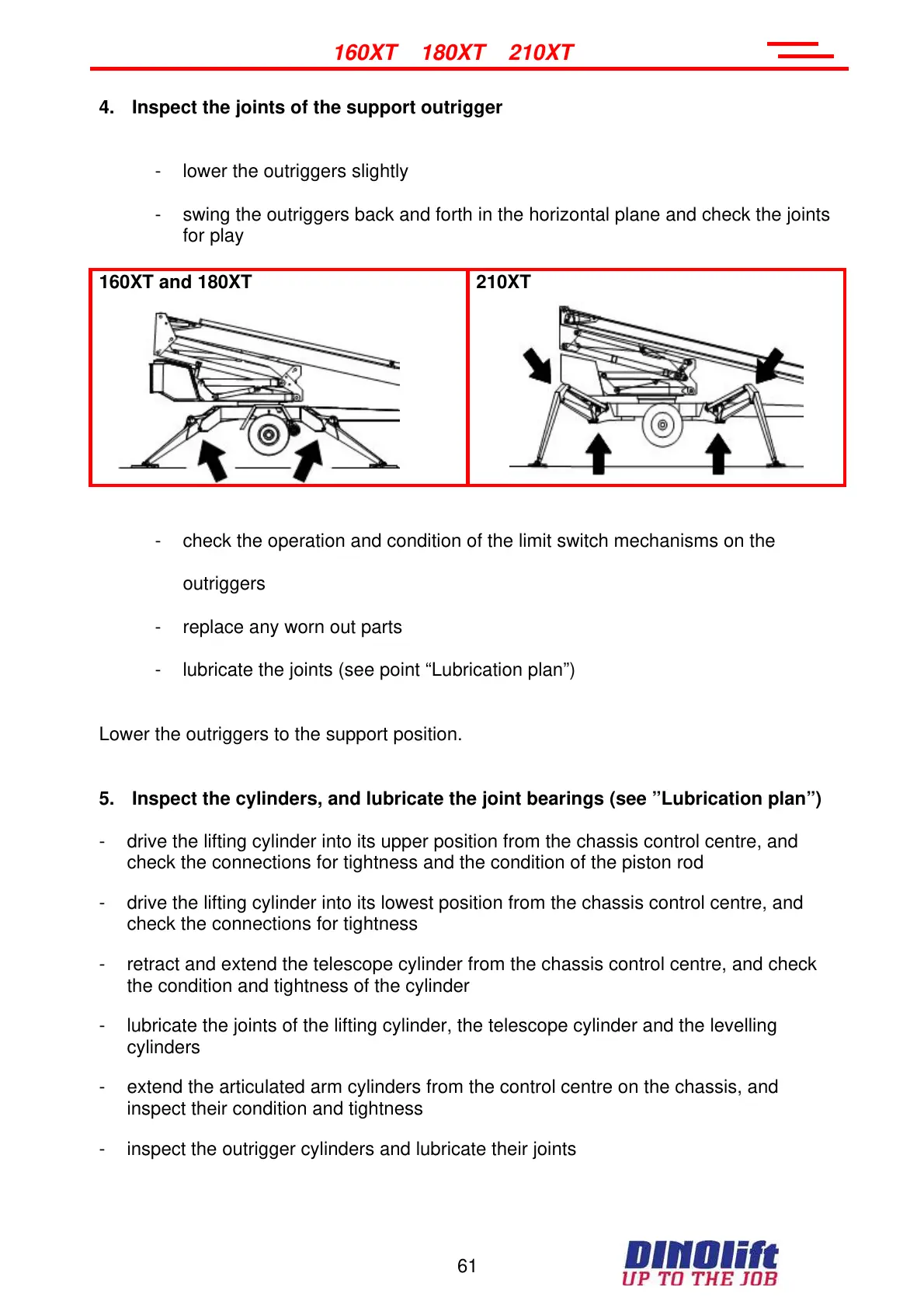

4. Inspect the joints of the support outrigger
- lower the outriggers slightly
- swing the outriggers back and forth in the horizontal plane and check the joints
for play
160XT and 180XT 210XT
- check the operation and condition of the limit switch mechanisms on the
outriggers
- replace any worn out parts
- lubricate the joints (see point “Lubrication plan”)
Lower the outriggers to the support position.
5. Inspect the cylinders, and lubricate the joint bearings (see ”Lubrication plan”)
- drive the lifting cylinder into its upper position from the chassis control centre, and
check the connections for tightness and the condition of the piston rod
- drive the lifting cylinder into its lowest position from the chassis control centre, and
check the connections for tightness
- retract and extend the telescope cylinder from the chassis control centre, and check
the condition and tightness of the cylinder
- lubricate the joints of the lifting cylinder, the telescope cylinder and the levelling
cylinders
- extend the articulated arm cylinders from the control centre on the chassis, and
inspect their condition and tightness
- inspect the outrigger cylinders and lubricate their joints
