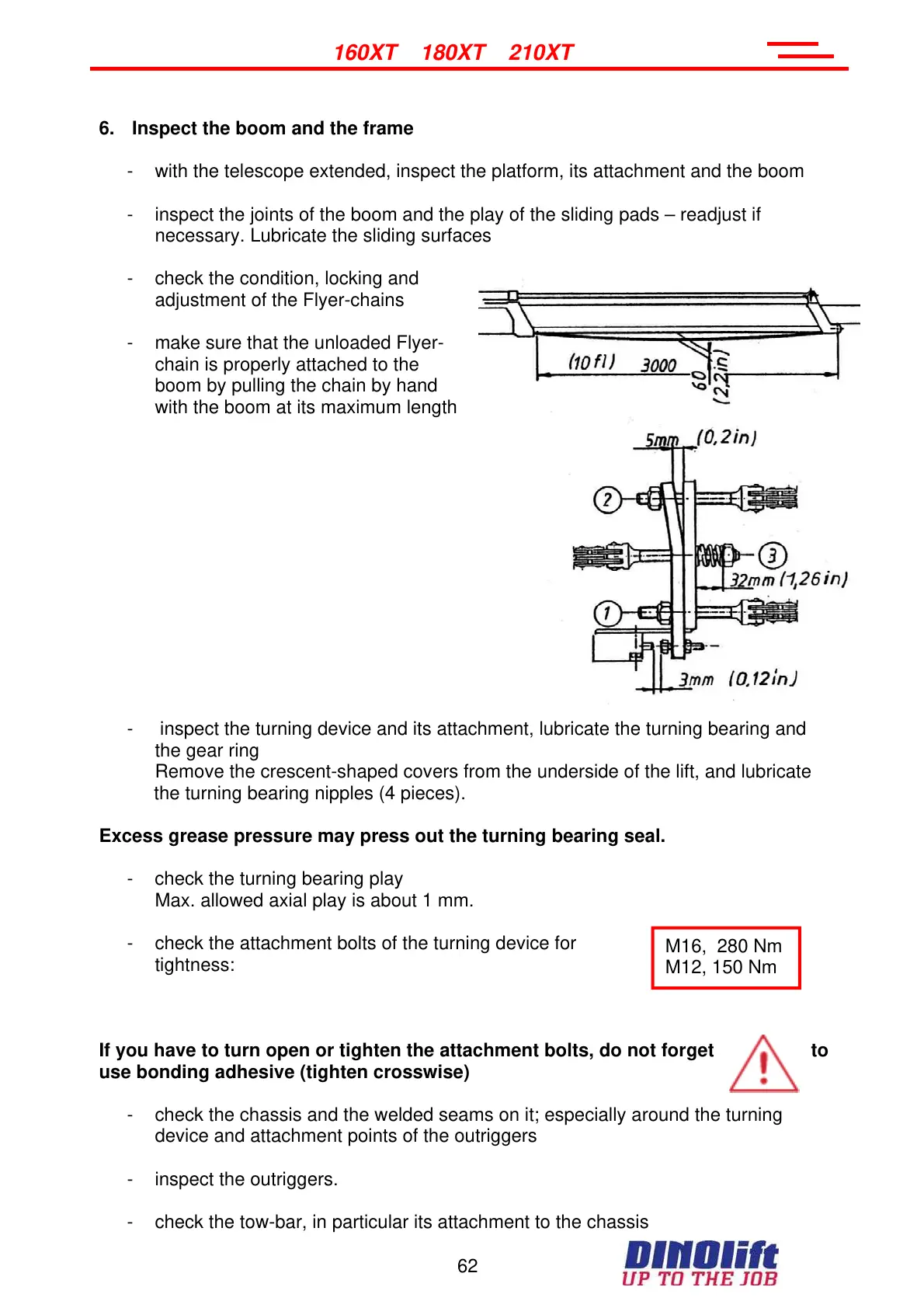

6. Inspect the boom and the frame
- with the telescope extended, inspect the platform, its attachment and the boom
- inspect the joints of the boom and the play of the sliding pads – readjust if
necessary. Lubricate the sliding surfaces
- check the condition, locking and
adjustment of the Flyer-chains
- make sure that the unloaded Flyer-
chain is properly attached to the
boom by pulling the chain by hand
with the boom at its maximum length
- inspect the turning device and its attachment, lubricate the turning bearing and
the gear ring
Remove the crescent-shaped covers from the underside of the lift, and lubricate
the turning bearing nipples (4 pieces).
Excess grease pressure may press out the turning bearing seal.
- check the turning bearing play
Max. allowed axial play is about 1 mm.
- check the attachment bolts of the turning device for
tightness:
If you have to turn open or tighten the attachment bolts, do not forget to
use bonding adhesive (tighten crosswise)
- check the chassis and the welded seams on it; especially around the turning
device and attachment points of the outriggers
- inspect the outriggers.
- check the tow-bar, in particular its attachment to the chassis
