Distech Controls ECL-PTU Series User Manual

52 ECL-PTU-207 Preloaded Applications
6. Click OK. The devices are now matched and added to the LONWORKS Network database.
7. Once the devices have been added to the LONWORKS NETWORK, commission the devices: To do so,
double-click BcpLonNetwork, select the device(s), and click Commission.

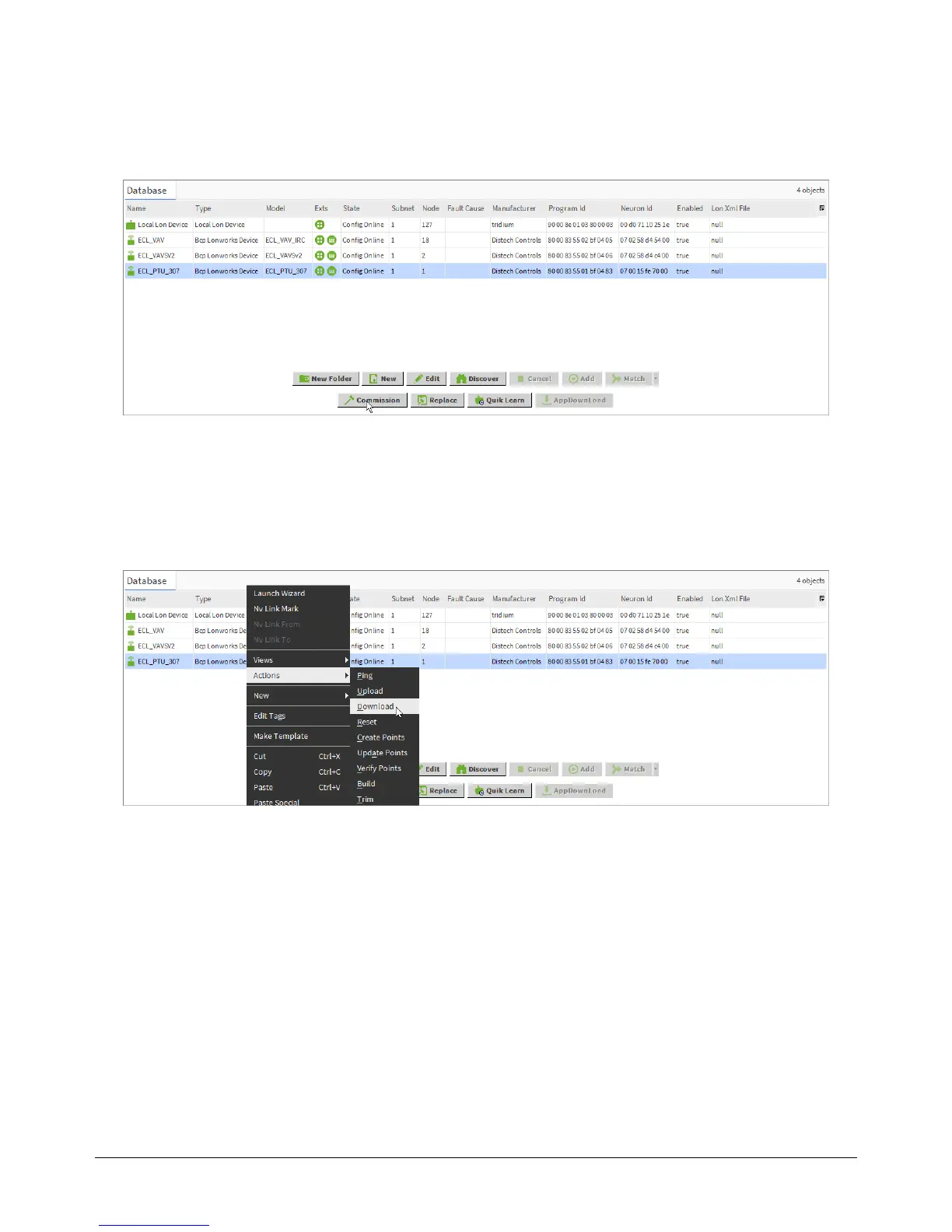

Figure16: Commissioning the Device
8. The Commission window is displayed. Click Service Pin and then physically press the service pin
button on the device. You can also commission the device manually by entering the device's Neu-
ron ID number. For more details on how to commission a device, refer to the "Getting Started" sec-
tions in the EC-gfxProgram User Guide.
9. Now to synchronize the data, the configuration properties must be downloaded from the database
to the controller. Right-click on the new device and select Actions and then Download.
Figure17: Action Download - Action Upload
10. Click OK and then perform an upload on the device: Right click on the device and select Actions
and then Upload. This will take the configuration properties from the controller to the database.
11. Now from the BcpLonNetwork folder, double-click the new device. An overview of the system in
place appears in the View pane.
Using the dcgfxApplications
