76 ECL-PTU-207 Preloaded Applications
UI2 - Input 2
Parameter Default Valid
Choices
Description
UI2
(EC2)
X 0 SP OFFSET Setpoint offset is connected to UI2
1 DISCH TEMP Discharge temperature sensor is connected to UI2.
2 RETURN TEMP Return air temperature sensor is connected to UI2.
3 WATER TEMP Water Temperature sensor is connected to UI2.
4 UNUSED UI2 is not used.
Table11: Universal Input 2

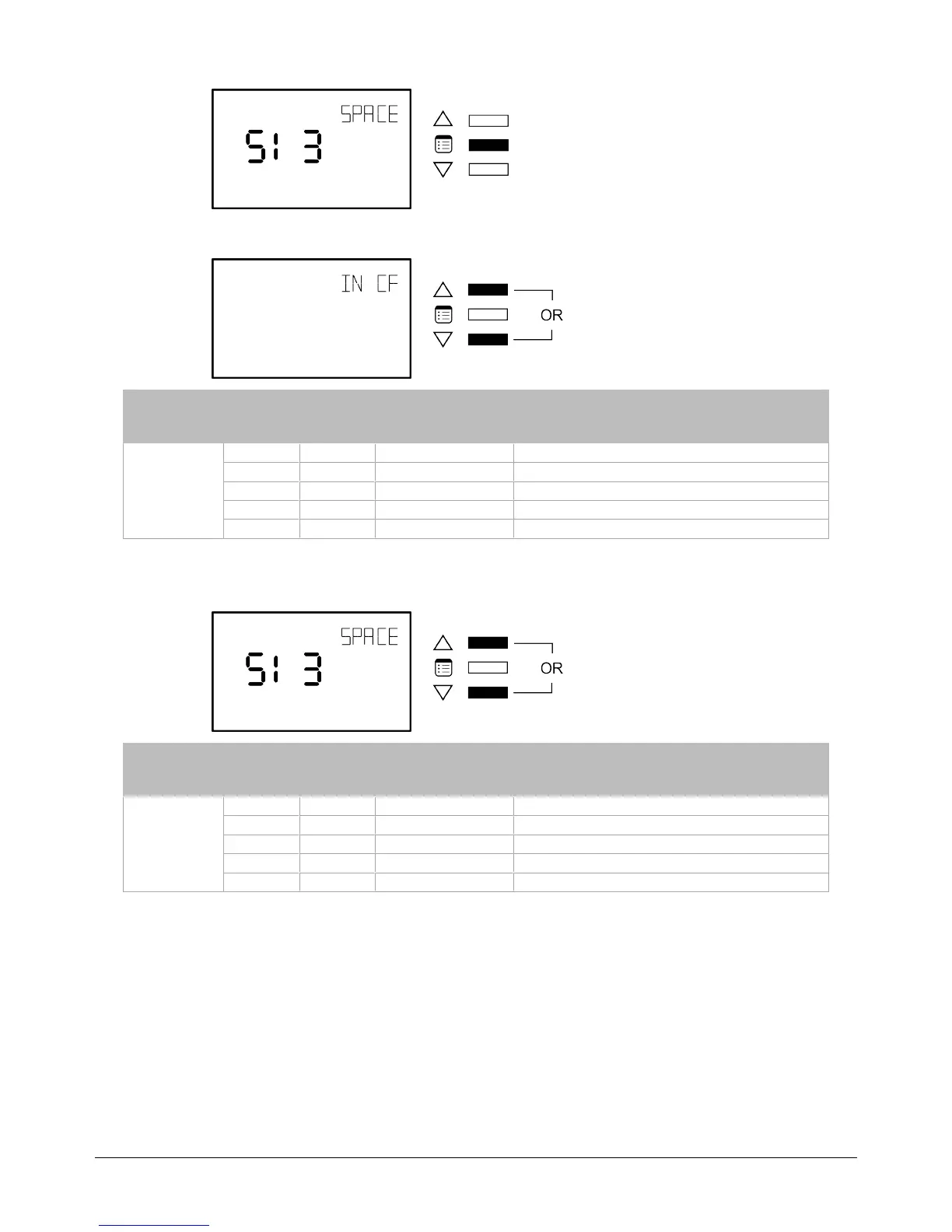

SI3 - Input 3
Parameter Default Valid
Choices
Description
SI3
(nviFP44)
X 0 SPACE TEMP Space temperature sensor is connected to SI3
1 DISCH TEMP Discharge temperature sensor is connected to SI3.
2 RETURN TEMP Return air temperature sensor is connected to SI3.
3 WATER TEMP Water Temperature sensor is connected to SI3.
4 UNUSED SI3 is not used.
Table12: Sensor Input 3
