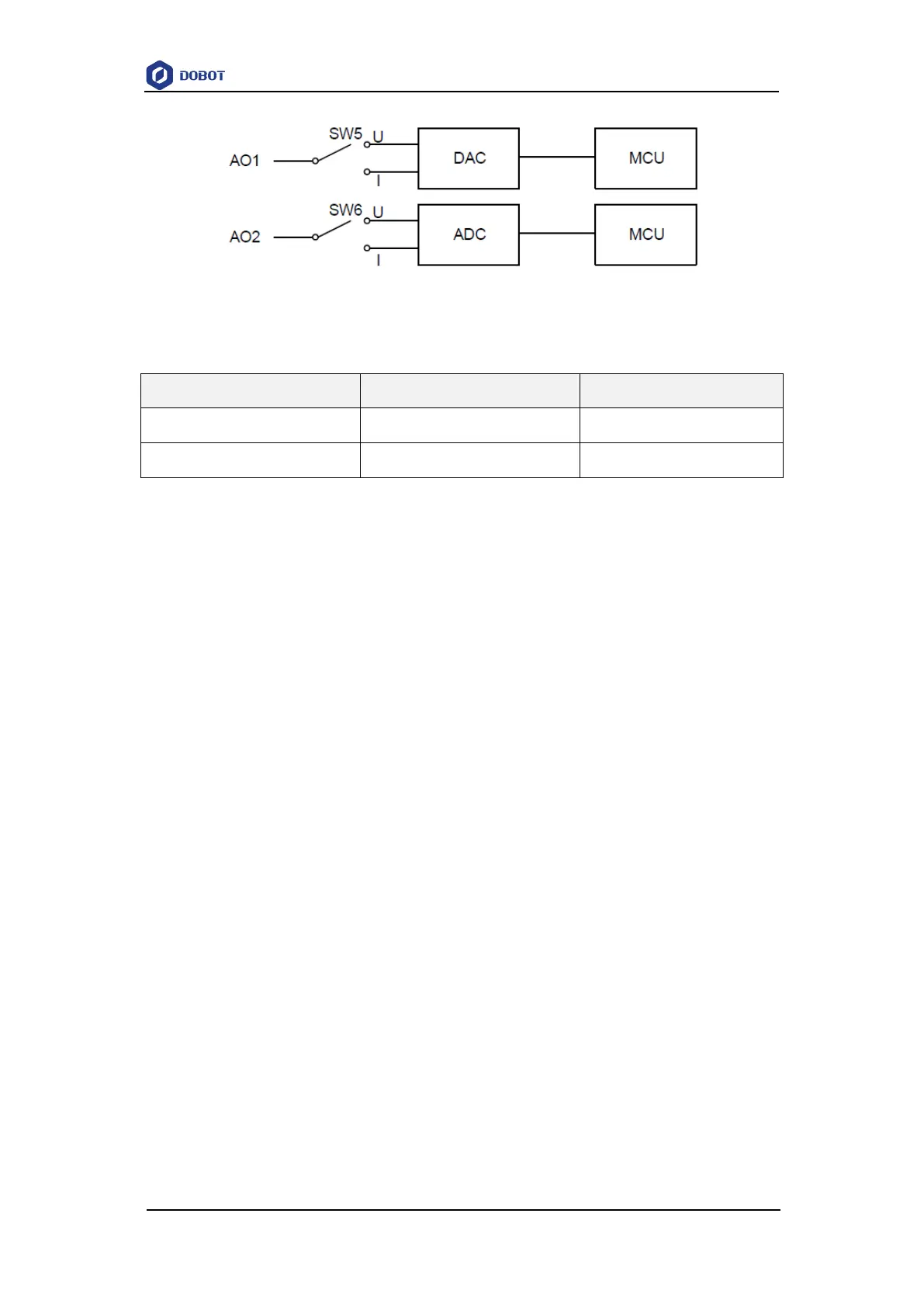

Figure C.4 Analog output simple circuit
Table C.4 DIP switch status and analog output type
DIP switch status
Analog output type
Range
ON
Current output
Current: 4mA~20mA
OFF
Voltage output
Voltage: 0V~10V
