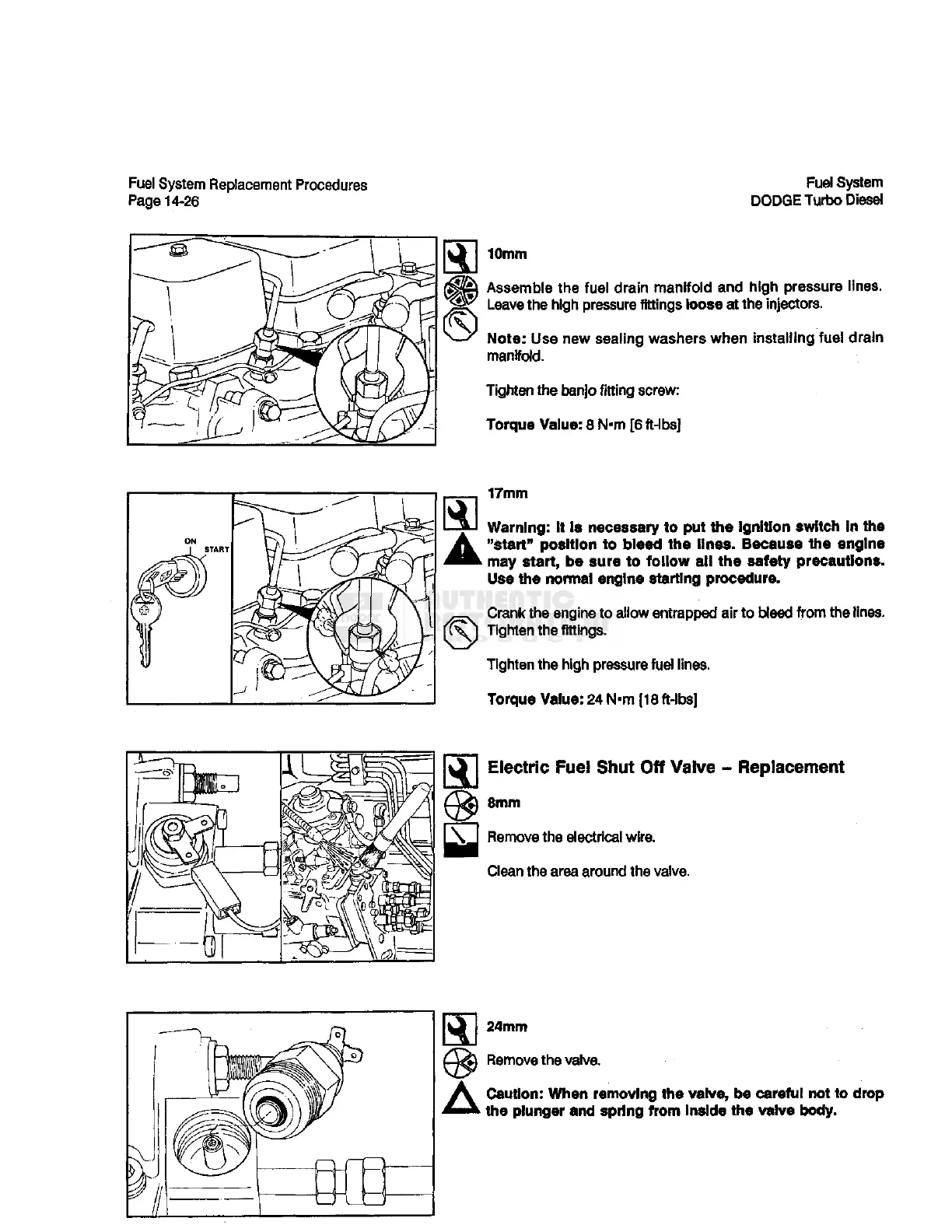

Fuel System Replacement Procedures
Page 14-26
Fuel System
DODGE Turbo Diesel
10mm
Assemble the fuel drain manifold and high pressure lines.
Leave the high pressure fittings loose at the injectors.
Note: Use new sealing washers when installing fuel drain
manifold.
Tighten the banjo fitting screw:
Torque Value: 8 N-m [6 ft-lbs]
si
•
17mm
Warning: It Is necessary to put the ignition switch In the
"start" position to bleed the lines. Because the engine
may start, be sure to follow all the safety precautions.
Use the normal engine starting procedure.
—
x
Crank the engine to allow entrapped air to bleed from the lines.
W\) Tighten the fittings.
Tighten the high pressure fuel lines.
Torque Value: 24 N-m [18 ft-lbs]
|^| Electric Fuel Shut Off Valve - Replacement
8mm
Remove the electrical wire.
Clean the area around the valve.
A
24mm
Remove the valve.
Caution: When removing the valve, be careful not to drop
the plunger and spring from Inside the valve body.
