1.4 Engine Assembly

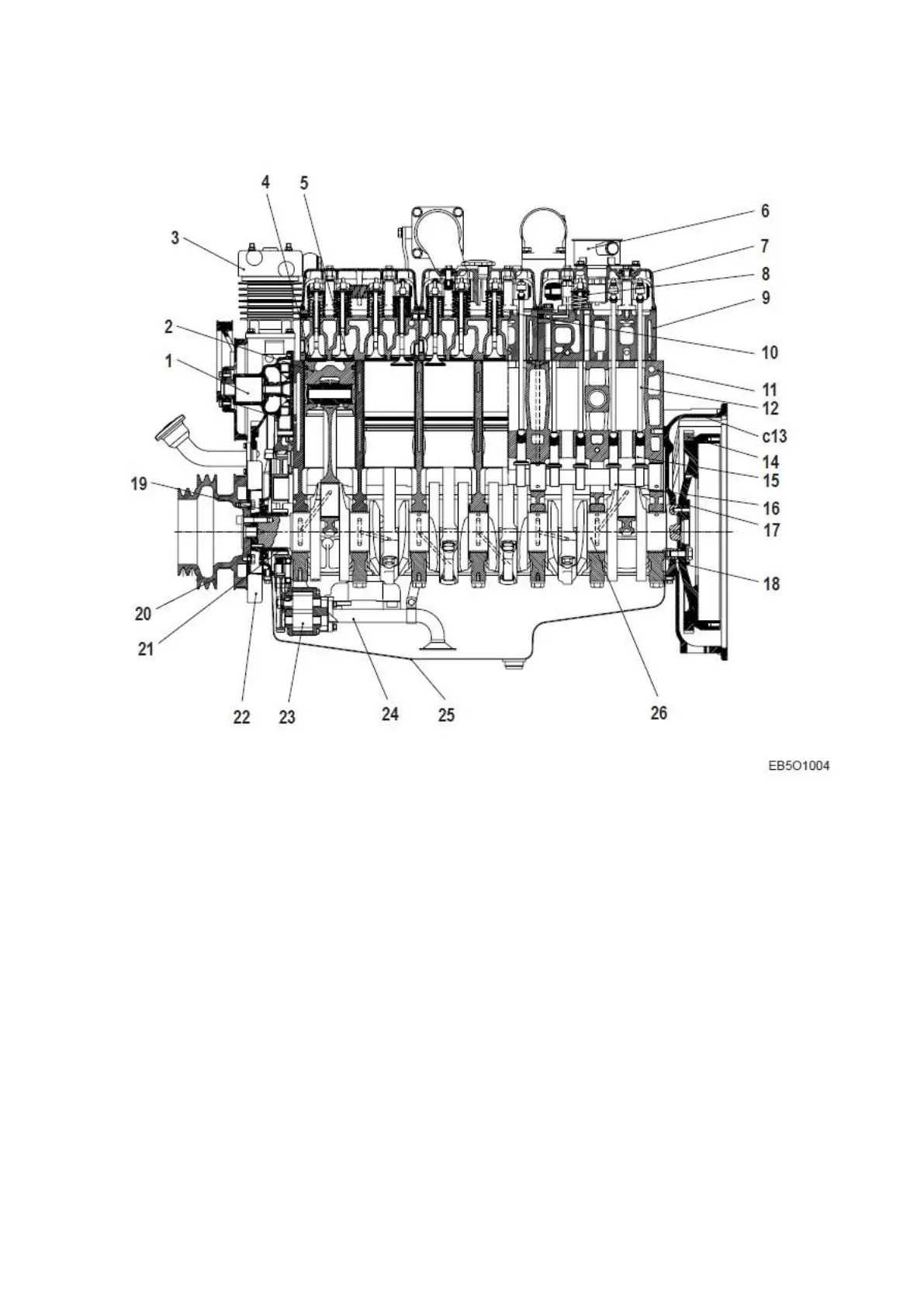

1.4.1 Engine sectional view (longitudinal)
SPC000006 5ton Diesel Engine
Page 10
1. Water pump
10. Intake valve spring
19. Oil seal (Front)
20. Crank shaft pulley
21. Crank shaft gear
22. Vibration damper
23. Oil pump
24. Oil suction pipe
25. Oil pan
26. Crank shaft
2. Piston
11. Cylinder block
3. Air compressor
4. Intake valve
12. Push rod
14. Ring gear
15. Tappet
16. Cam shaft
17. Fly wheel
18. Oil seal (Rear)
5. Exhaust valve
6. Breather
7. Cylinder head cover
8. Exhaust valve spring
9. Cylinder head
13. Flywheel housing
