Doosan DISD SD 310 - Electric Detent System; Electric Return Circuit

Electric Detent System
Electric detent system includes swing arm lifting limitation system and cylinder automatic laid flat system.
Electric return circuit
Reference Number
Description
Reference Number
Description
1
Fuse Box
5
Float Magnet
2
Raise Relay
6
Return to Dig Magnet
3
Return to Dig Relay
7
Proximity Switch 1
4
Raise Magnet
8
Proximity Switch 2
Electrical System SPC000025
Page 25

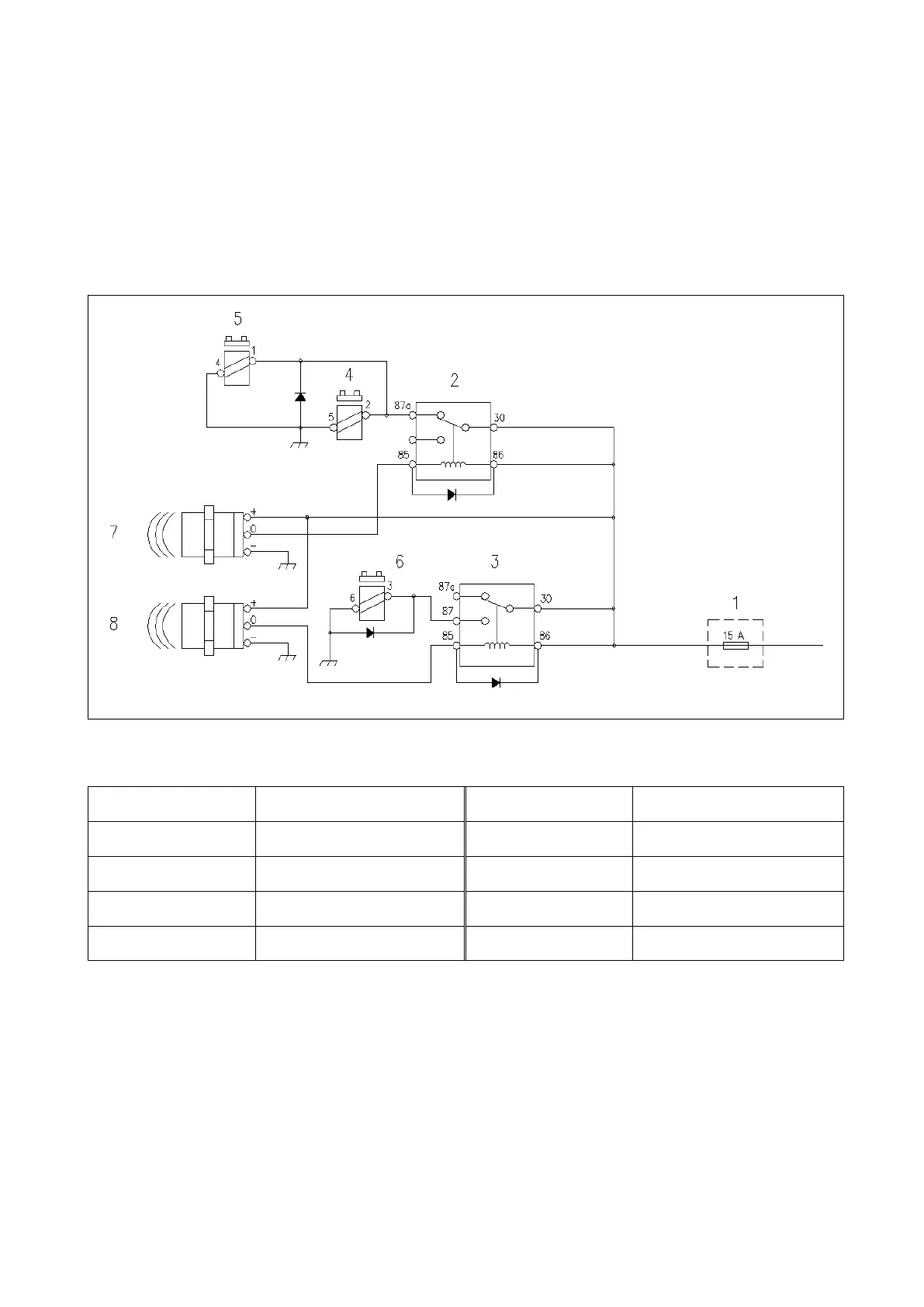

Figure 11. Electric detent system circuit
