AXLE REASSEMBLY

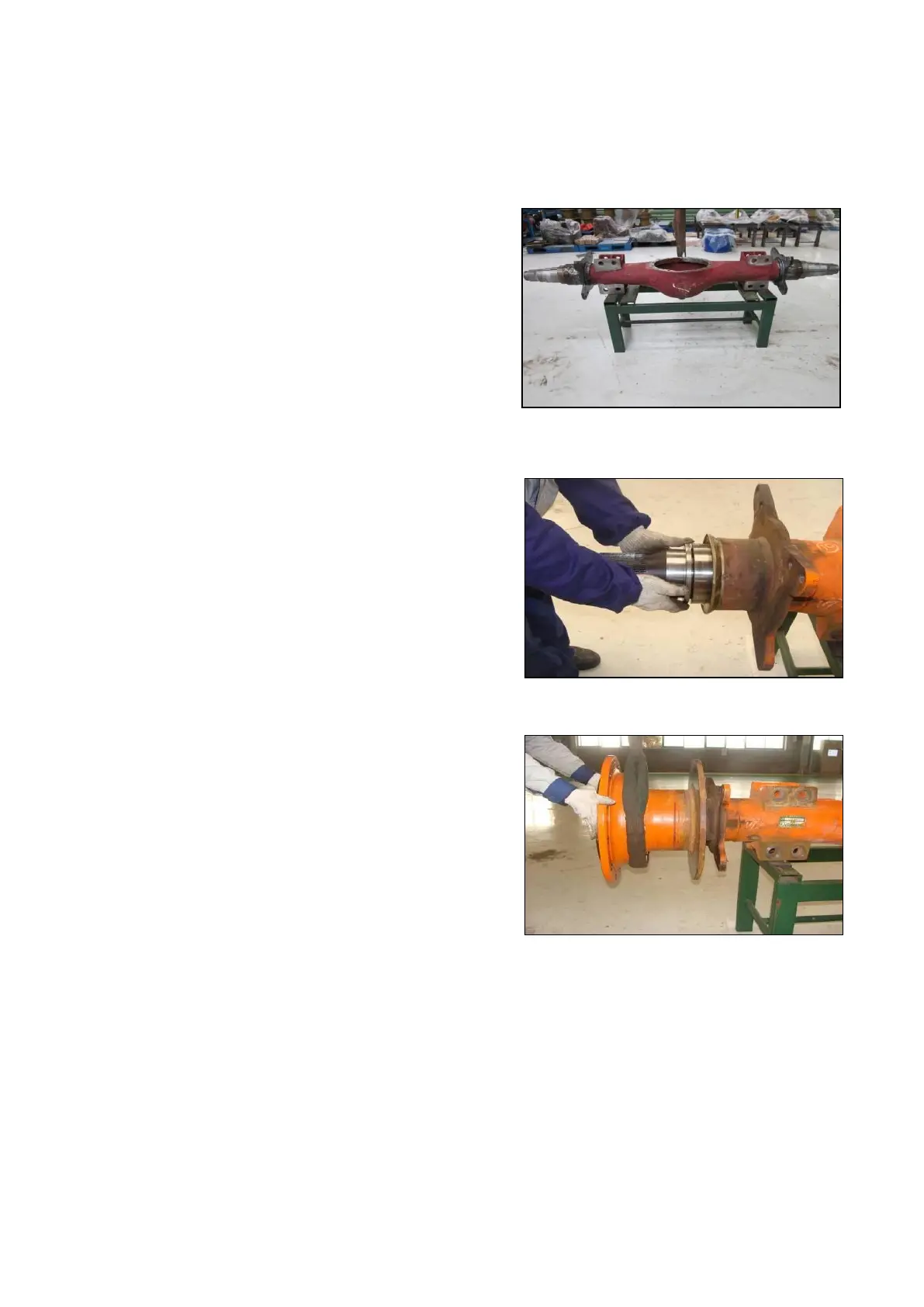

Axle assembly
1 Shell
Clean shell and suspend with special supporting.
Fasten gummed plug screw at oil inlet and oil filler.
Note: Plug screw fastening torque
175 ~ 235 Nm
Note: Letai 262 taper thread sealant.
2. Spacer bush
Overturn shell and install bearing spacer bush.
Chamfered side of the spacer faced axle hump.
3. Wheel hub assembly
Coat lubrication grease on hub supporting axle of
shell assembly, assembly wheel hub assembly on
both sides of supporting axle of shell assembly.
Assembly bearing inner ring on the larger side of
wheel hub.
Front Axle SPC000009
