Doosan DISD SD 310 - Assembly Dismantling

Assembly dismantling

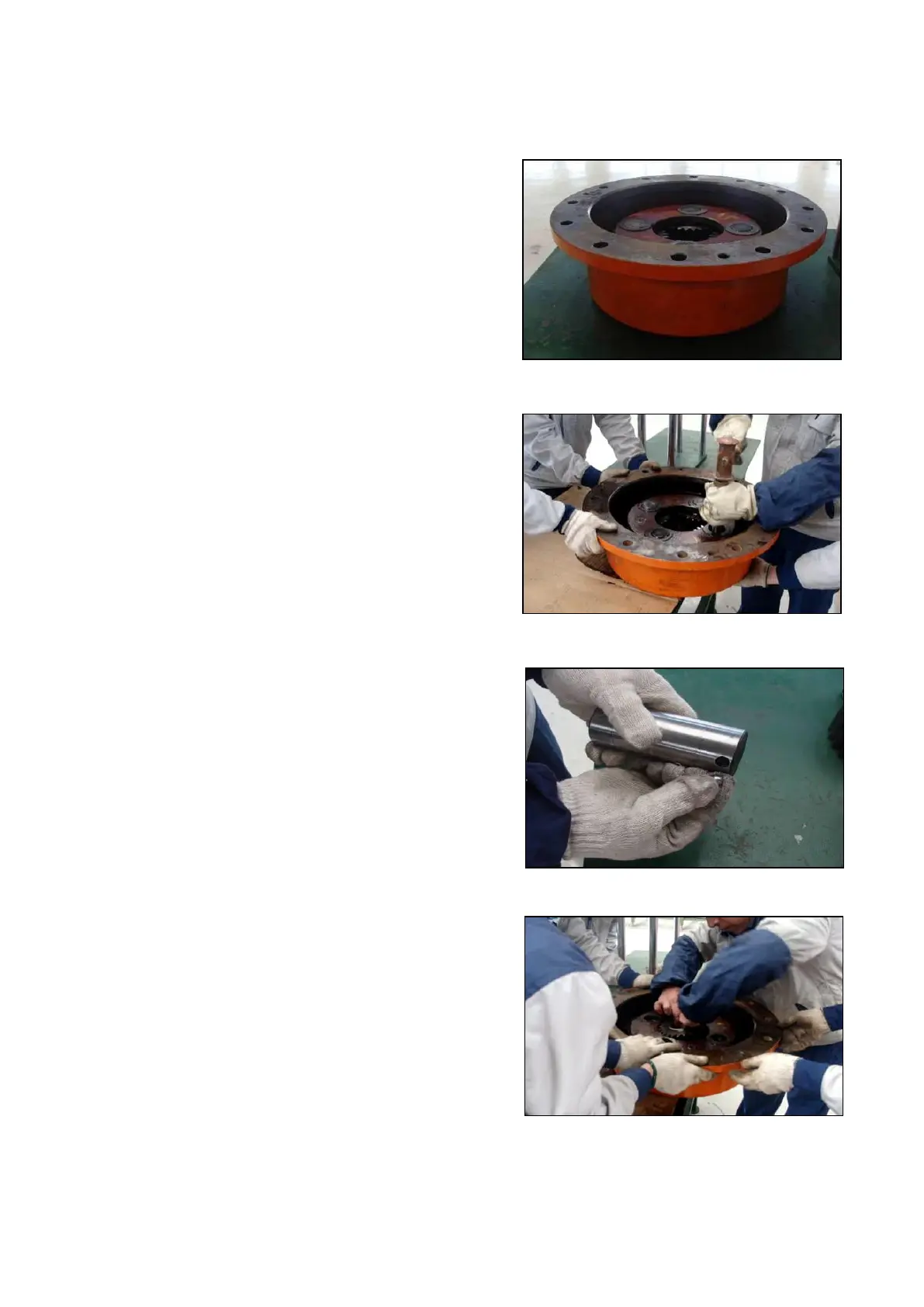

Dismantle planet carrier assembly
1. Put planet carrier on working platform horizontally.
2. Take out planet axle with tools.
3. Take out steel balls.
4. Take out planet wheel and gasket.
Rear Axle SPC000010
Page 17
Figure 23
Figure 24
Figure 25
Figure 26
