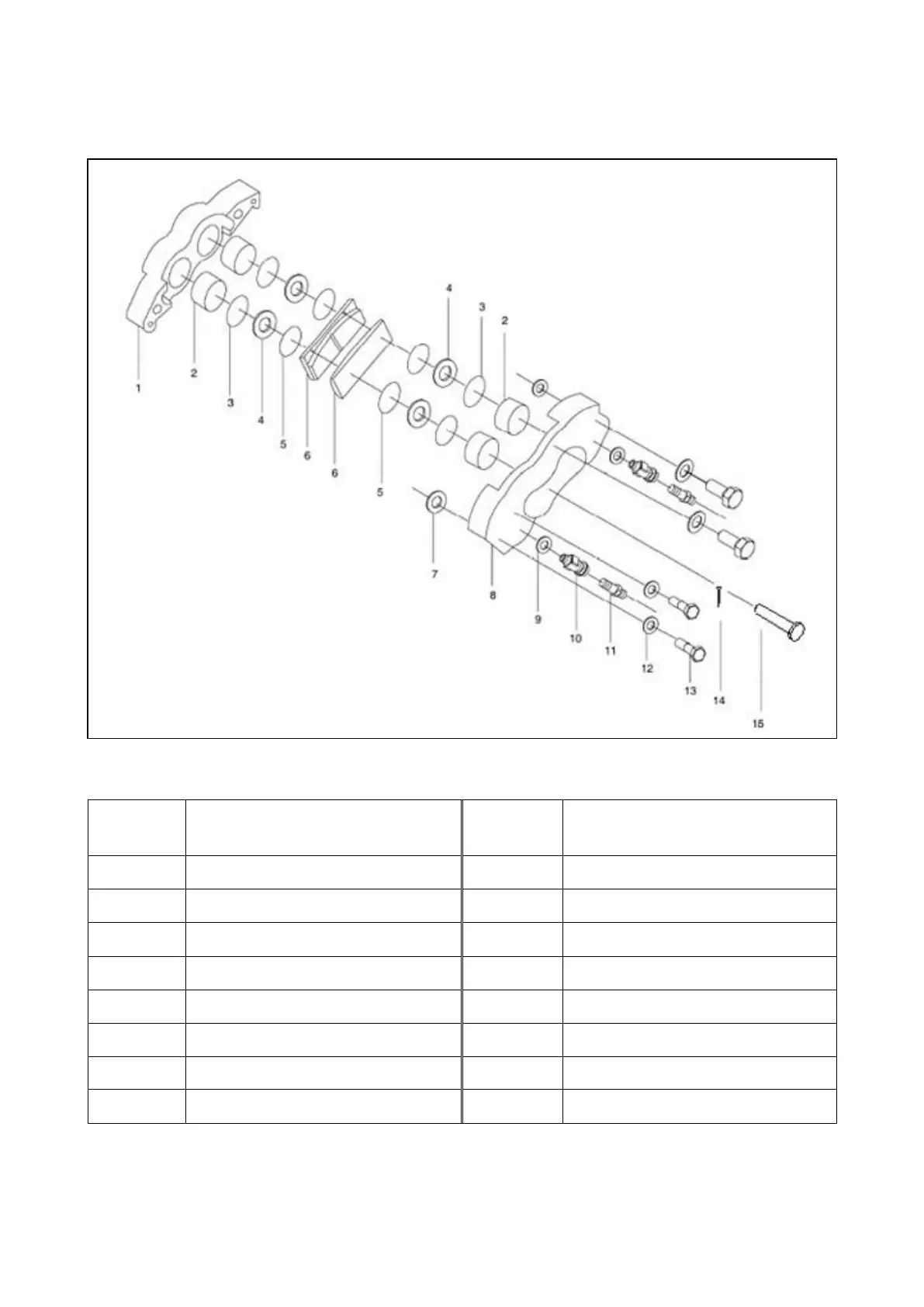

Drive axle brake assembly
Reference
Number
Description
Reference
Number
Description
1
EXTERIOR BRAKE
9
201.6 “O” RING
2
PISTON
10
SUPPORT,DEFLATING VALVE
3
RECTANGULAR SEAL
11
DEFLATING VALVE
4
DUST CASE
12
WASHER
5
BLOCK RING
13
BOLT
6
BRAKE DISK
14
SPLIT PIN
7
202.4 “O” RING
15
PIN
8
INNER BRAKE
SPC000009 Front Axle
Page 10
Figure 6
