Doosan DISD SD 310 - Instrument Panel

Instrument panel
Reference
Number
Description
Reference
Number
Description
1
Air Pressure Meter
12
Air filter plugging warning indicator
2
Fuel Gauge
13
Preheat Indicator
3
Tachometer
14
High Beam Indicator
4
Voltage meter
15
Parking Brake Indicator
5
Torque Converter Oil Temperature
Meter
16
Turn and Hazard Warning Light
6
Engine Coolant Temperature Gauge
17
Turn and Hazard Warning Light
7
Hour meter
18
Water temperature too high warning light
8
Speedometer
19
Charging Warning Light
9
Odometer
20
Brake low pressure warning light
10
Engine oil pressure meter
21
TM Oil pressure too low warning light
11
Neutral position indicator
22
Electrical System SPC000025
Page 15

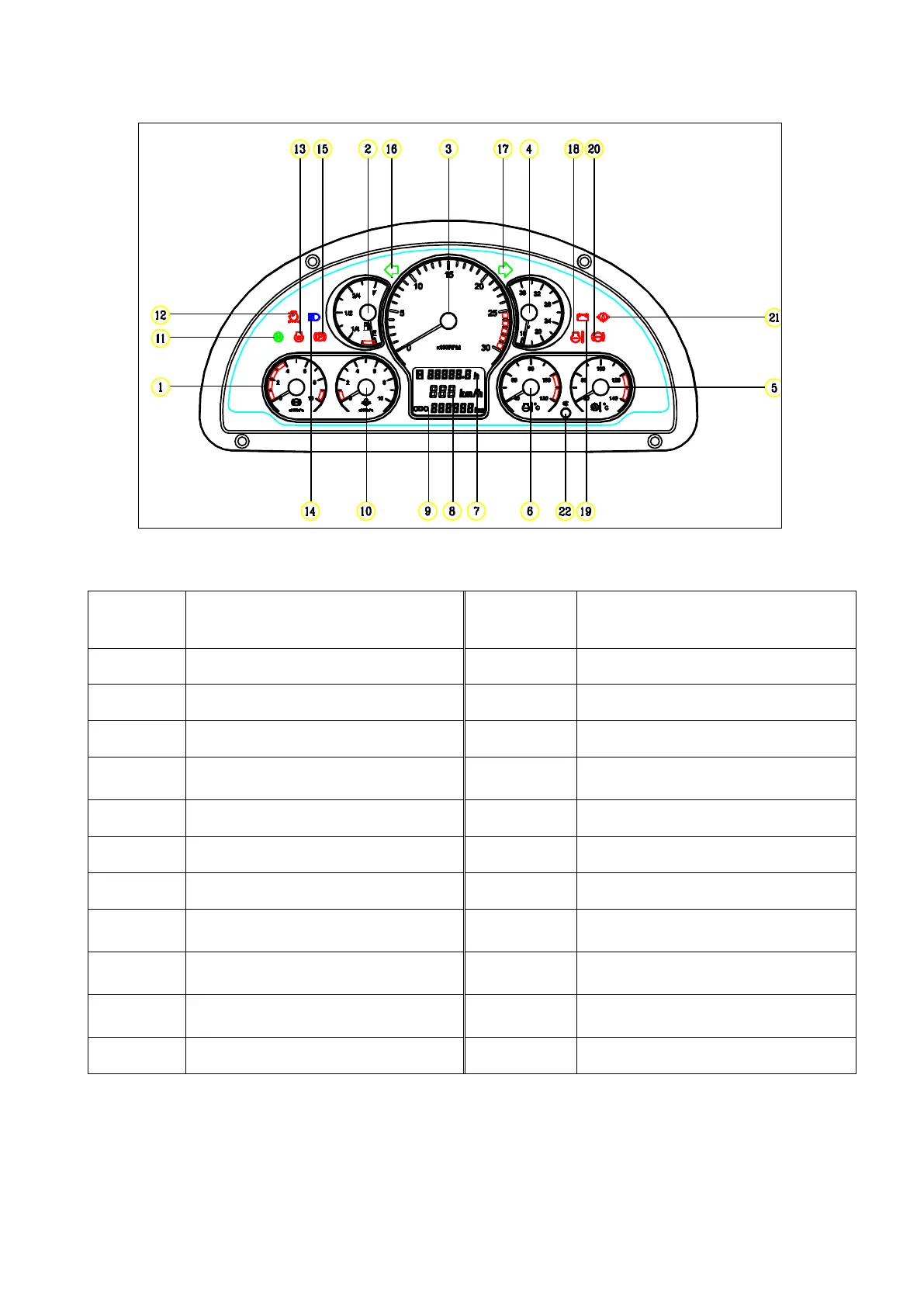

Figure 7. Instrument panel arrangement plan
