Assembly dismantling

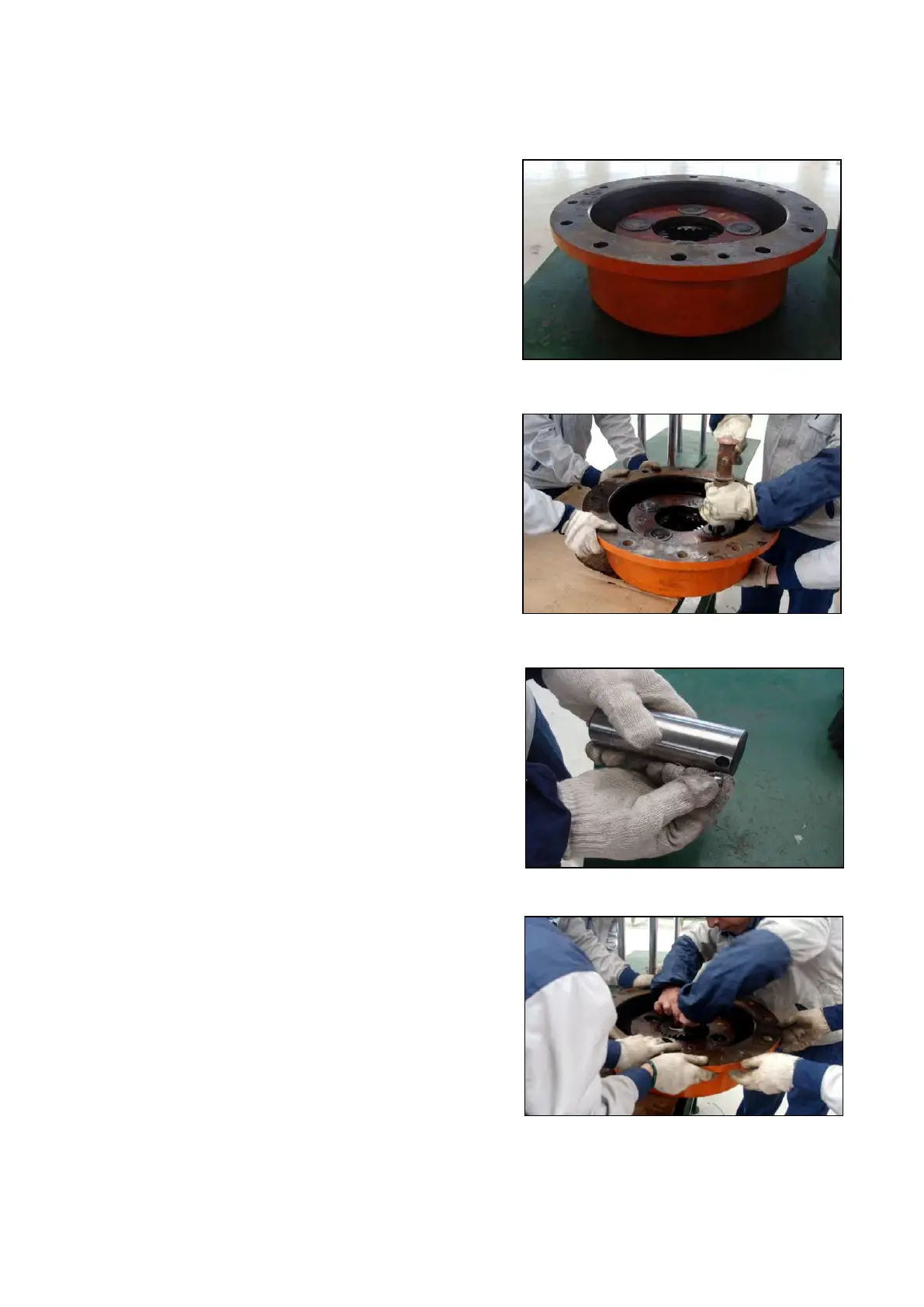

Dismantle planet carrier assembly
1. Put planet carrier on working platform horizontally.
2. Take out planet axle with tools.
3. Take out steel balls.
4. Take out planet wheel and gasket.
SPC000009 Front Axle
Page 18
Figure 24
Figure 25
Figure 26
Figure 27
