Doosan DISD SD 310 - Oil-Water Separator

2. Oil-water separator
4.
Reference
Number
Description
Reference
Number
Description
1
SHELL ASS’Y
9
RELIEF VALVE ASS’Y
2
REGULATING VALVE
10
ORIFICE PLUG
3
EAR DRUM
11
ONE-WAY VALVE
4
STEM
12
FILTER ASS’Y
5
REGULATING SPRING
13
OIL COLLECTOR
6
UPPER COVER
14
AIR BLEEDING PISTON
7
REGULATING SCREW
15
LOWER SHELL
8
CONTROLING PISTON
ASS’Y
16
AEROFIOL NUT
SPC000021 Brake System
Page 6

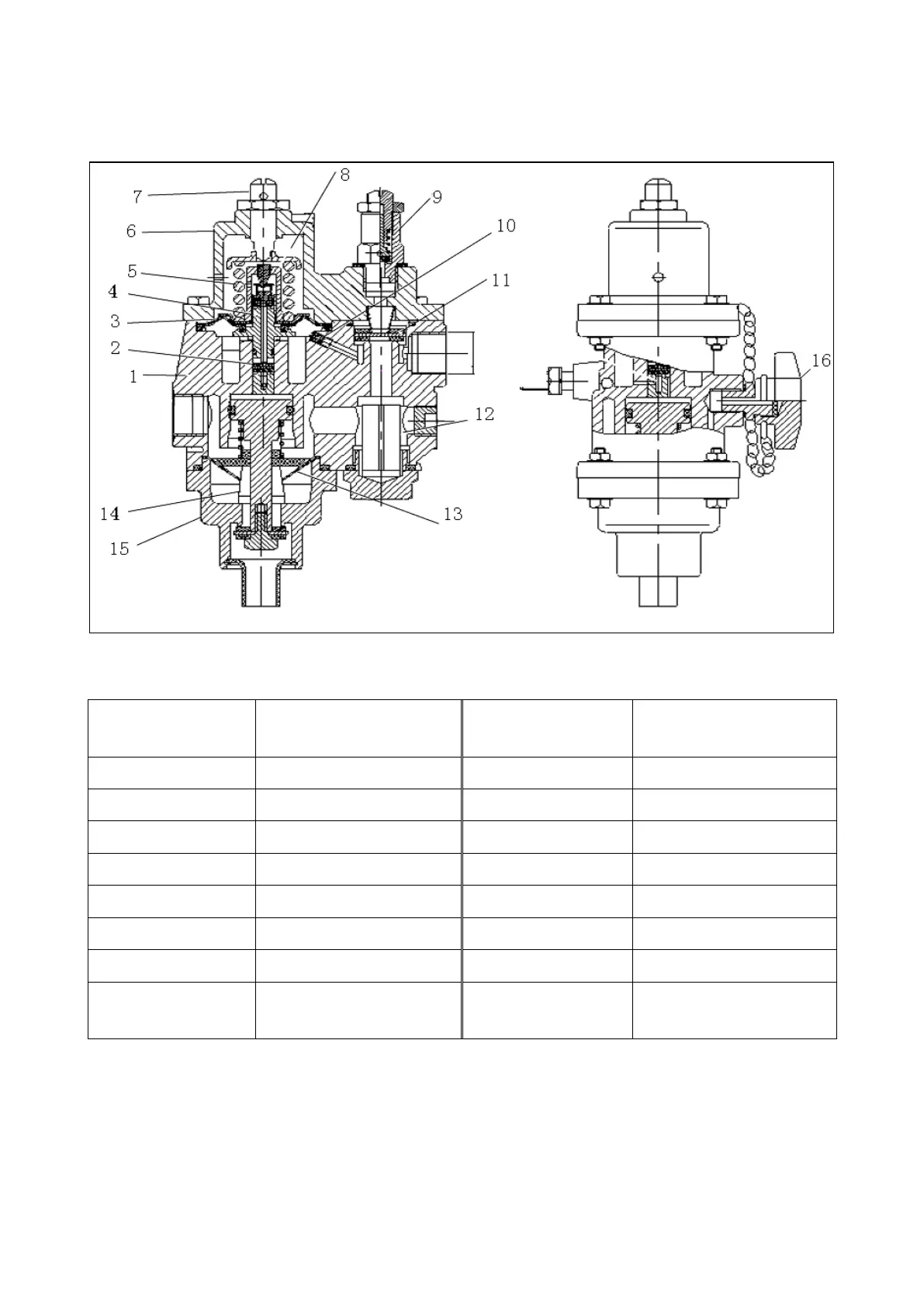

Figure 3
