AXLE DISASSEMBLY

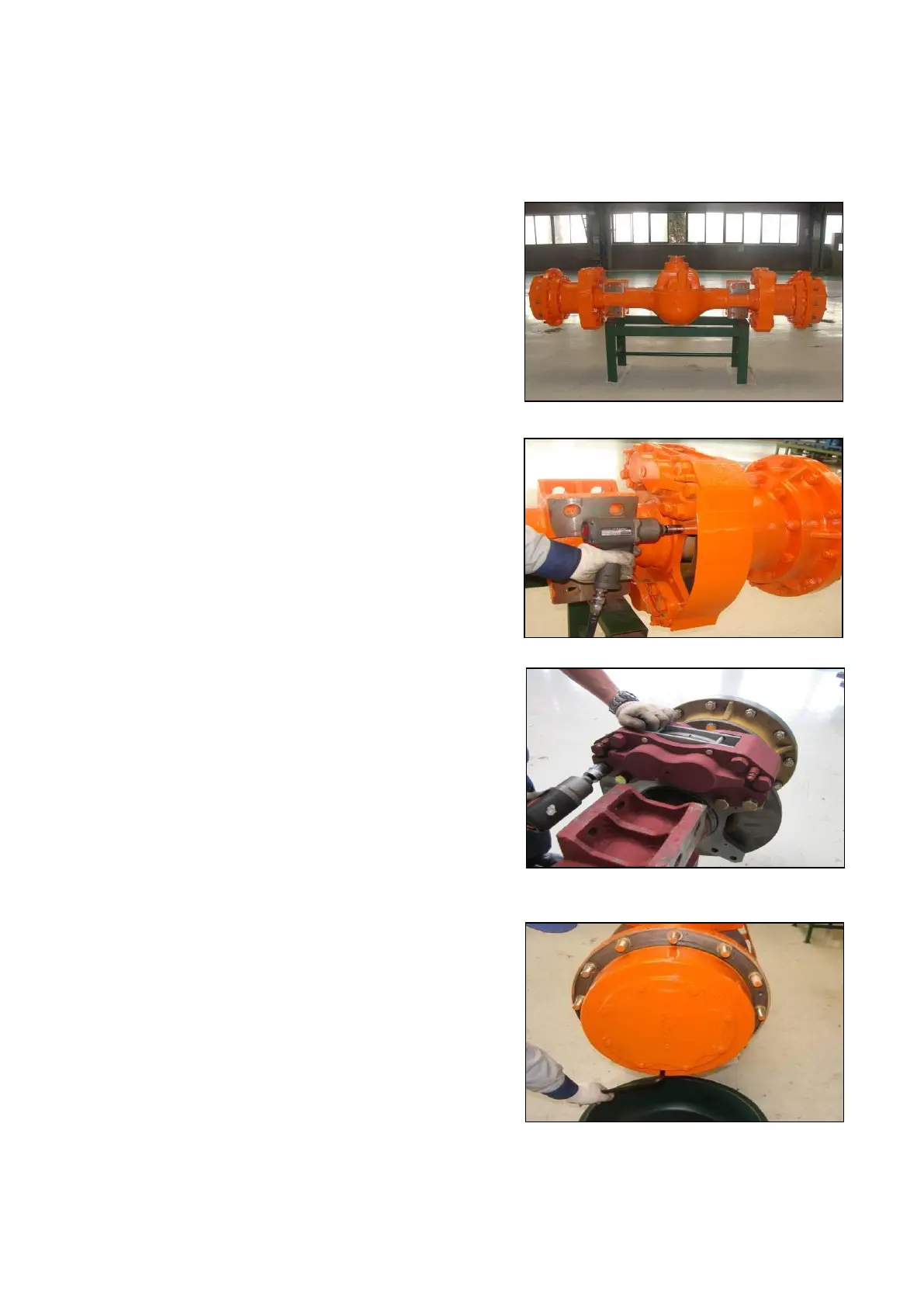

Drive axle disassembly
1. Put drive axle on supporting and make sure main
driver assembly is upward.
2. Dismantle brake caliper dust cover
Loosen bolts of dust cover with tools of relative
specifications (such as sleeve, open end wrench,
etc, same as following situation, which will not state
again).
3. Dismantle brake caliper assembly
Loosen the connection bolts between brake caliper
and brake caliper support, dismantle brake caliper
assemble.
4. Release gear oil from
Loosen hub oil releasing drain plug and shell oil
releasing drain plug, turn on slowly with hands to
avoid oil spilling.
NoteStore gear oil with clean container.
Front Axle SPC000009
