AXLE DISASSEMBLY
Drive axle disassembly
1. Put drive axle on supporting and make sure main
driver assembly is upward.
2. Dismantle brake caliper assembly
Loosen the connection bolts between brake caliper
and brake caliper support, dismantle brake caliper
assemble.
3. Release gear oil from
Loosen hub oil releasing drain plug and shell oil
releasing drain plug, turn on slowly with hands to
avoid oil spilling.
NoteStore gear oil with clean container.
4. Release gear oil from shell
Turn on oil releasing bolts axle end cap to release
gear oil.
NoteStore gear oil with clean container.
Rear Axle SPC000010
Page 13

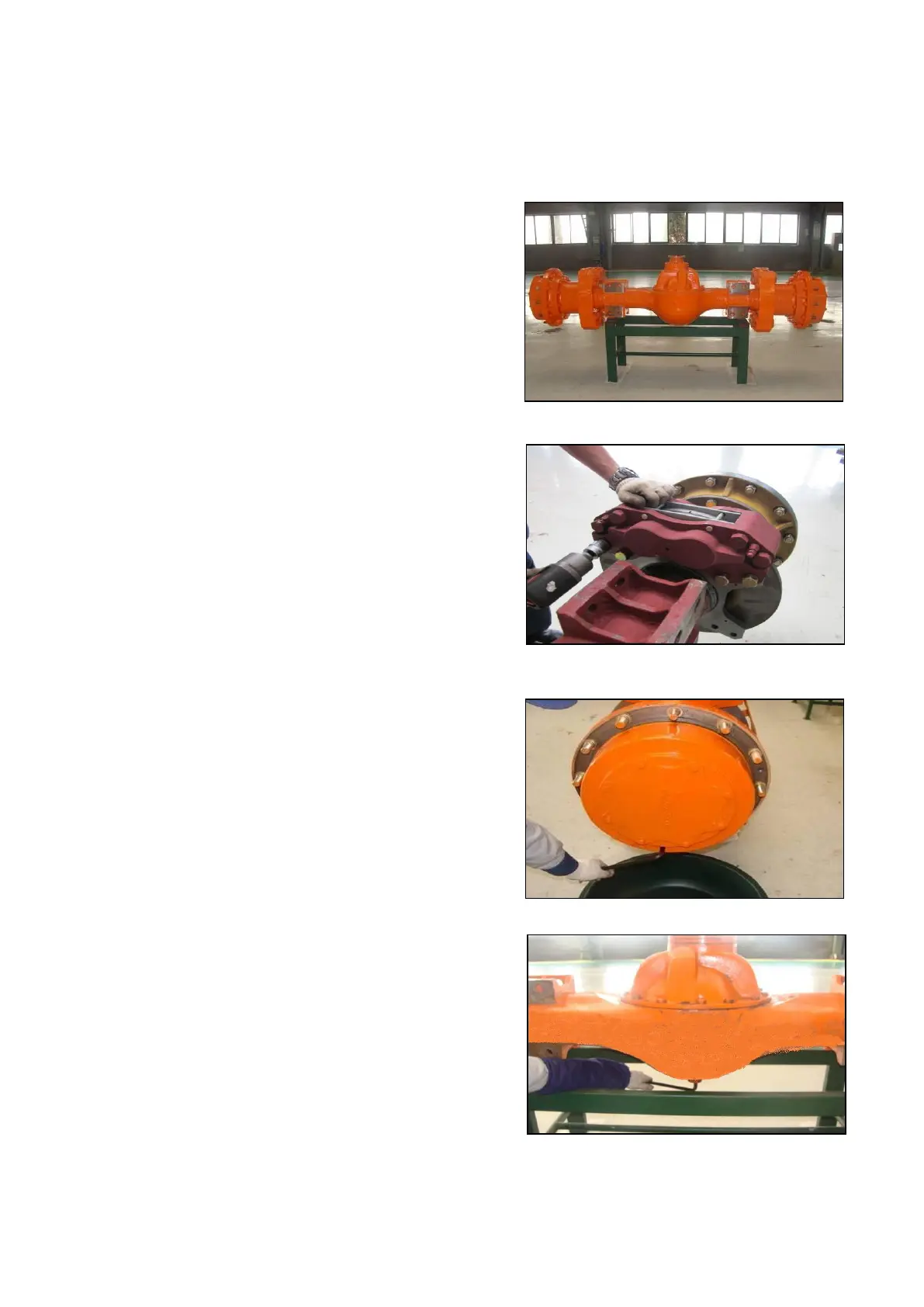

Figure 7
Figure 8
Figure 9
Figure 10
