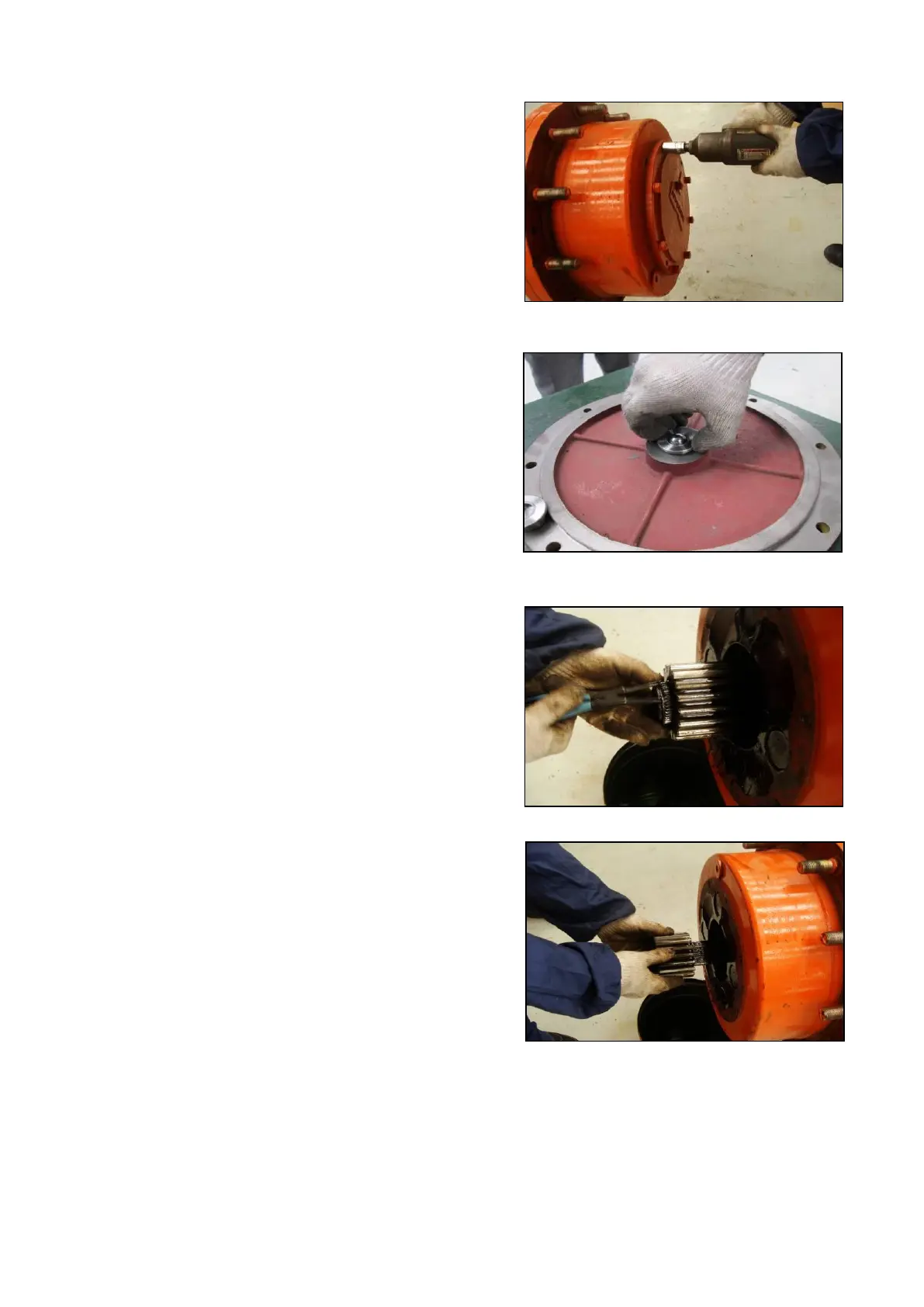

5. Dismantle end cap
Loosen connection bolts between planet carrier and
end cap, then get end cap from hub reducer
assembly with jackscrew, dismantle end cap.
6. Dismantle locating block
Take down locating block with hands.
NoteIf it is tight when taking down, please use
assistant tools to pry out.
7. Dismantle stop collar
Dismantle stop collar from semiaxis with stop collar
pincers.
Note: Before dismantling stop collar, pull out a
section of semiaxis from shell.
Note: It must clamp firmly when using stop collar
pincers to avoid safety hazard when it is popup.
8. Dismantle sun gear
Dismantle semiaxis from sun gear.
