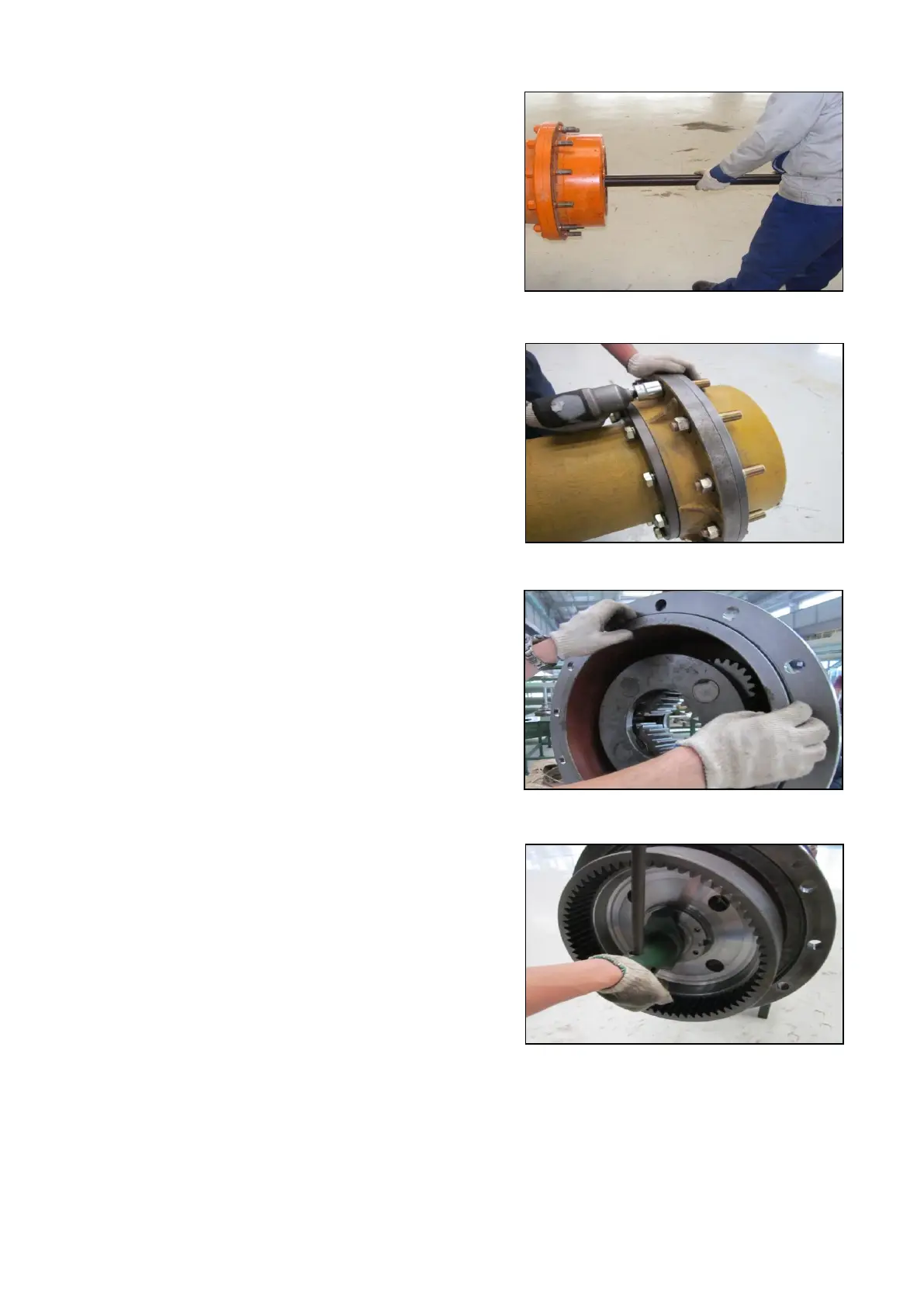

9. Dismantle semiaxis
Take semiaxis from shell slightly.
10. Hub reducer
First loosen rim bolts with relative tools, then loosen
rim from planet carrier with jackscrew and dismantle
planet carrier assembly.
Note: Please slowly loosen planet carrier to avoid safety
hazard resulted from dropping of planet carrier assembly.
11. O Ring
Dismantle O ring from planet carrier.
12. Dismantle round bolts
Pry up wire of bolt, loosen the clamp bolt of round
nuts ,then dismantle round nuts.
Rear Axle SPC000010
Page 15
