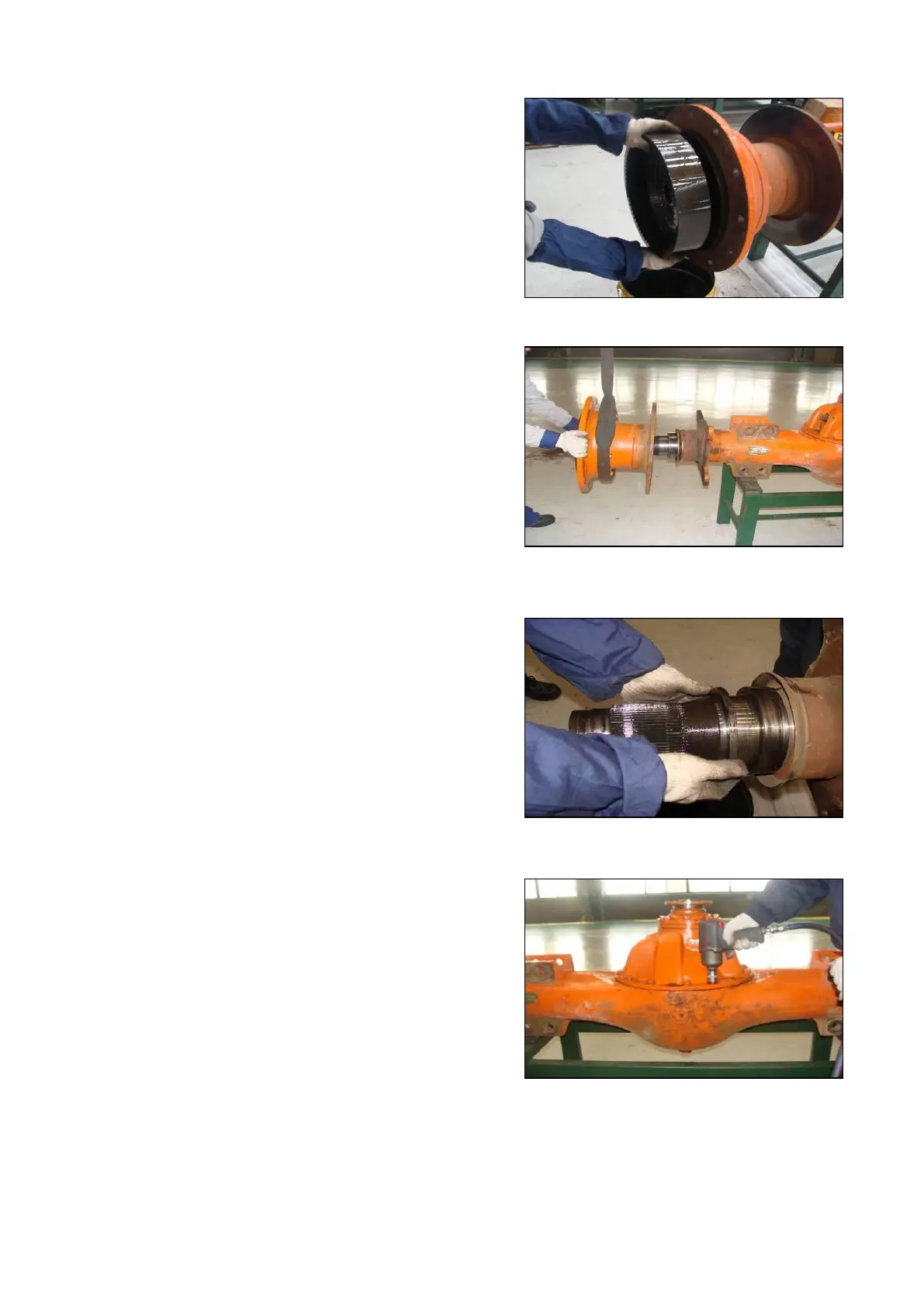

13. Dismantle internal gear
Take internal gear out by slightly rocking.
14. Dismantle wheel hub assembly
Take wheel hub assembly from supporting axle.
Note: During hanging and dismantling process,
please keep axis of wheel hub assembly is in line
with axis of hub reduction supporting axle to avoid
scratching oil surface and internal spare parts
during dismantling process.
15. Dismantle spacer bush
Take out spacer bush.
RemarkDismantle all parts at the other side with
the same method.
16. Dismantle main drive assembly
Dismantle connection bolts between main drive and
shell assembly, take out main drive with jackscrew,
and suspend main drive assembly.
Note: When suspending main drive assembly,
guarantee suspending and dismantling tools are at
the above of main drive assembly to avoid spare
parts inside are knocked again during suspending
and dismantling process.
SPC000010 Rear Axle
Page 16
