Doosan DISD SD 310 - Page 684

Reference Number
Description
Reference Number
Description
1
Fuse Box
11
Rear Lamp Switch
2
Combination Switch
12
Front Combination Lamp(L)
3
Stop Lamp Switch
13
Front Combination Lamp(R)
4
Room Lamp
14
Rear Combination Lamp(L)
5
High Lamp Relay
15
Rear Combination Lamp(R)
6
Low Lamp Relay
16
Hazard Switch
7
Blinker Unit
17
Position Lamp Switch
8
Rear Lamp
18
Front Lamp Switch
9
Working Lamp
19
Back Relay
10
Working Lamp Switch
SPC000025 Electrical System
Page 24

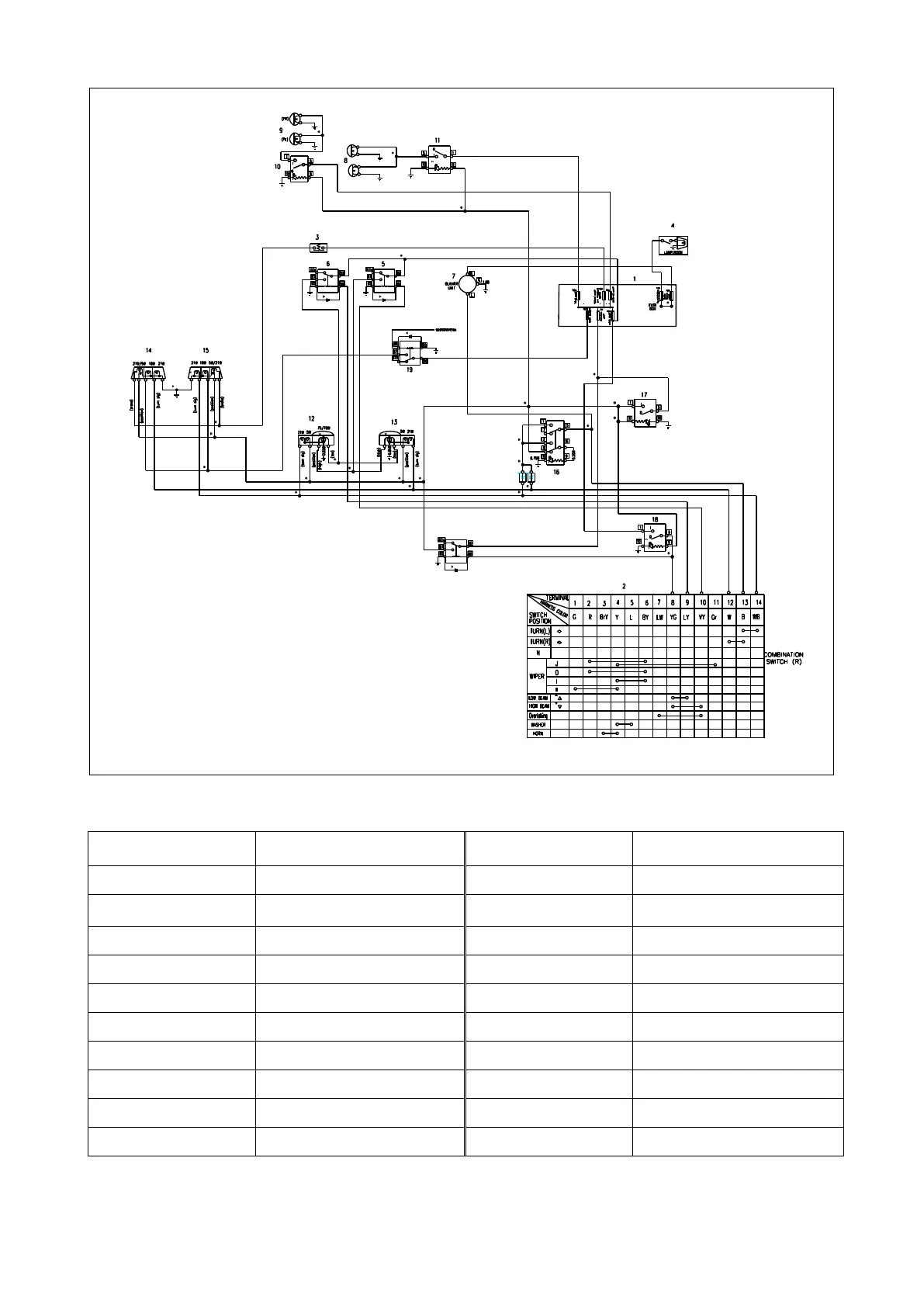

Figure 10. Lighting system circuit diagram
