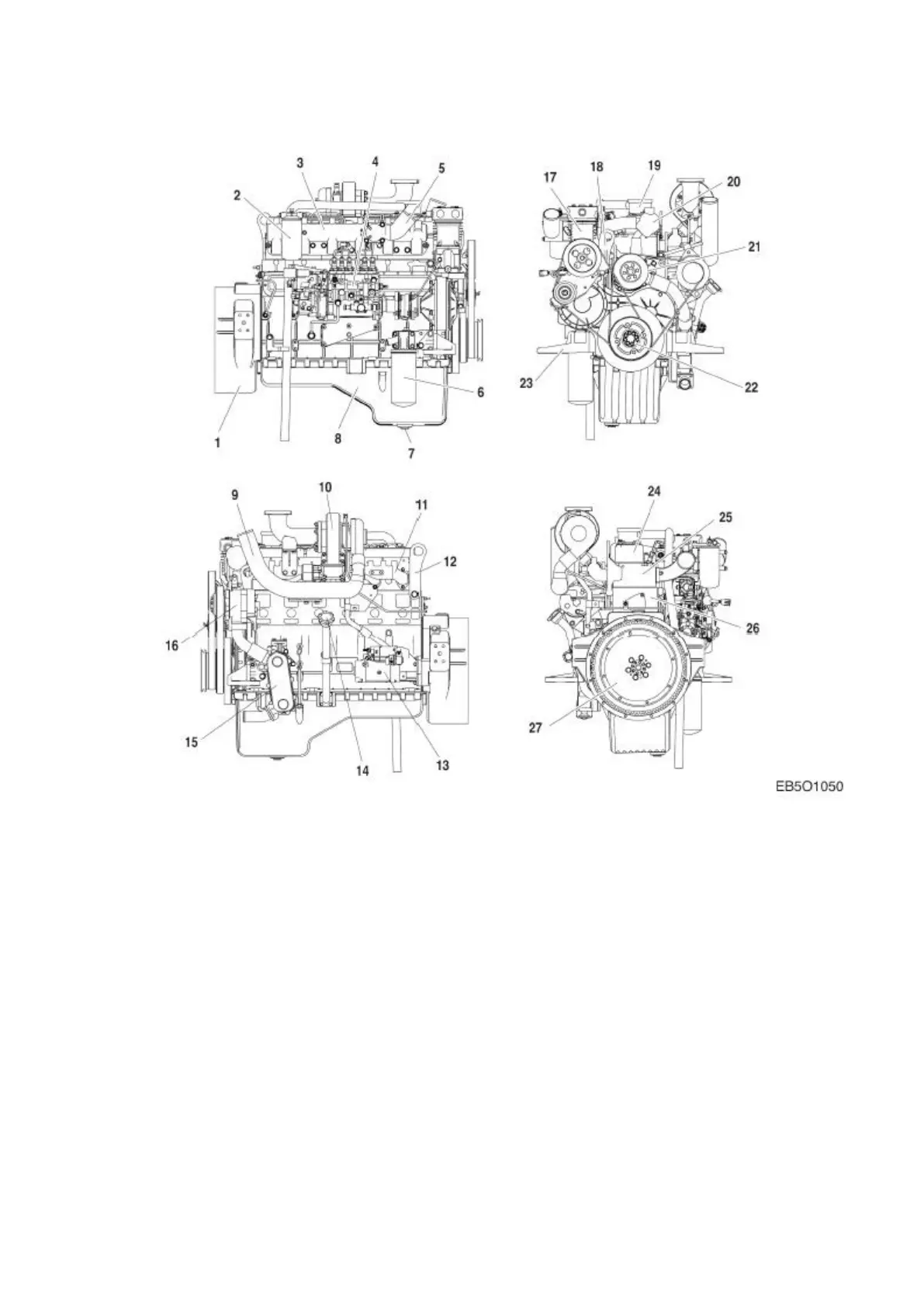

1.4.3 Engine assembly views
1. Flywheel housing
10. Turbocharger
19. Breather
2. Fuel filter
11. Exhaust pipe
20. Thermostat
3. Intake pipe
12. Lifting hook (Rear)
21. Water pump
4. Fuel injection pump
13. Starter
22. Crankshaft pulley
5. Air pipe (From air cooler to
intake manifold)
14. Oil filler cap
23. Mounting bracket
6. Oil filter
15. Oil cooler
24. Cylinder head cover
7. Drain plug
16. Alternator
25. Cylinder head
8. Oil pan
17. Air compressor
26. Cylinder block
9. Air pipe (From turbocharger
to air cooler)
18. Lifting hook (Front)
27. Flywheel
