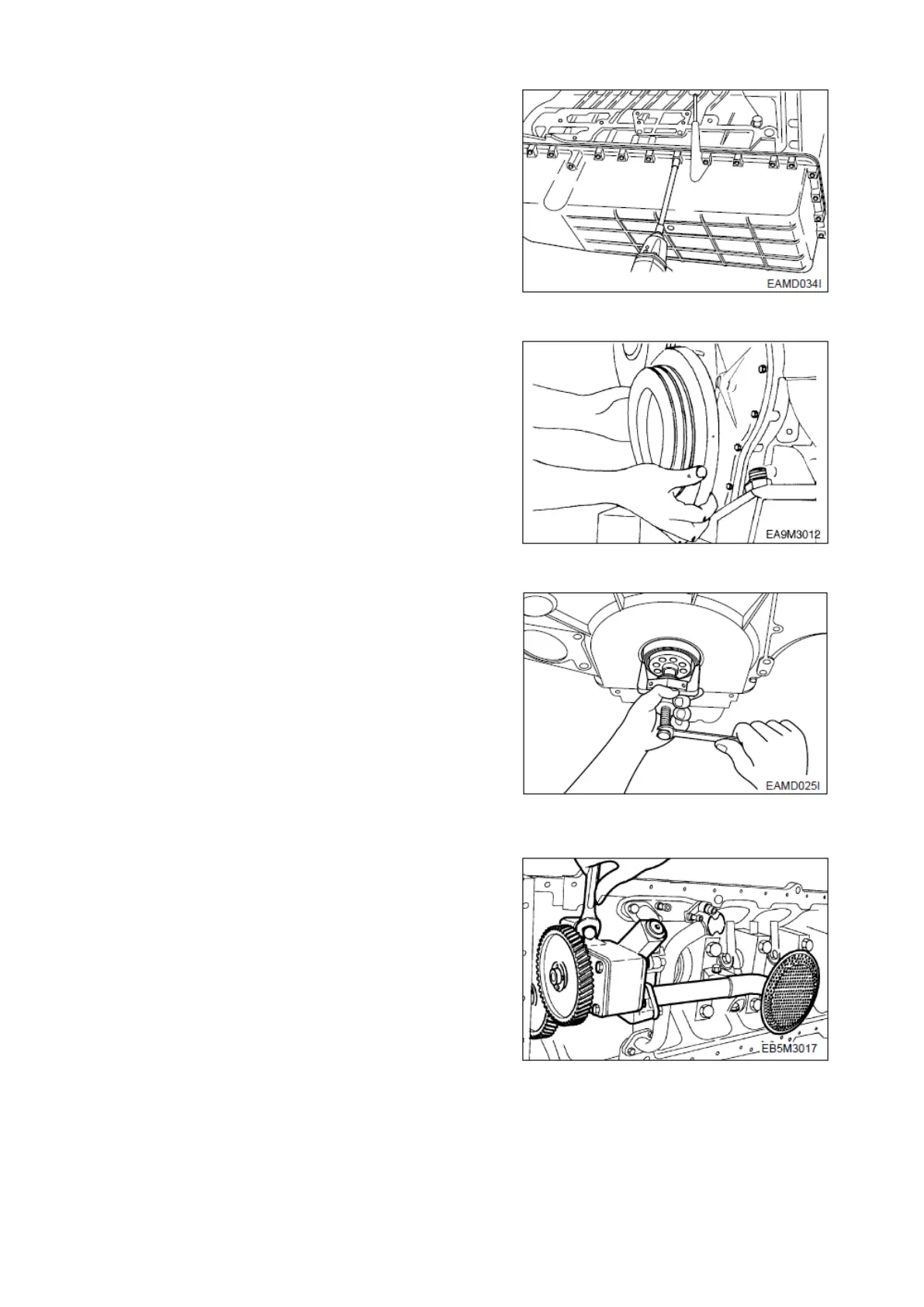

3.1.27 Oil pan
Unscrew the oil pan fixing bolts and remove the oil pan.
Remove the oil pan gasket and discard it.
3.1.28 Vibration damper
Unscrew the vibration damper fixing bolts in reverse
sequence of installing sequence and remove the
vibration damper assembly.
3.1.29 Timing gear case cover
Disassemble the oil seal using an oil seal removing jig.
Remove the cover fixing bolts and disassemble the
cover from the timing gear case.
3.1.30 Oil pump
Unscrew the bracket fixing bolts of the oil suction pipe.
Unscrew the pipe fixing bolt of oil pump and disassemble
the suction and supply oil pipe.
Unscrew the oil pump fixing bolts, and disassemble the
oil pump.
