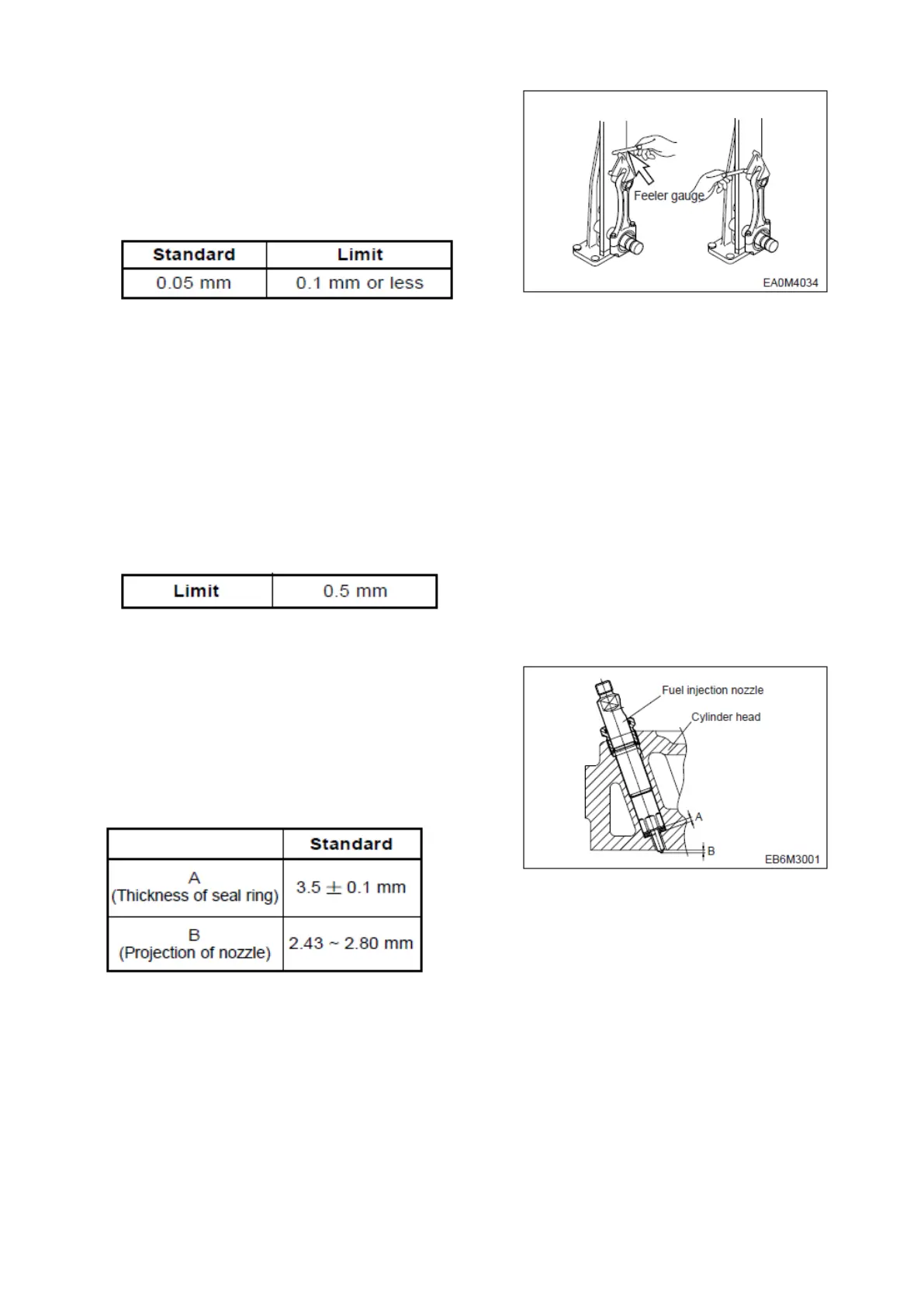

(2) Holes alignment (parallelism)
Measure the alignment of the connecting rod piston
pin bushing holes with connecting rod big end holes.
At this time also, use both connecting rod tester and
feeler gauge.
(3) Wear
Assemble the connecting rod to the crankshaft and
measure connecting rod big end side clearance using
a feeler gauge.
Assemble the connecting rod to the piston and
measure connecting rod small end side clearance.
If the measured values are beyond the limit, replace
the connecting rod.
3.2.7 Fuel injection nozzle projection (DE08TIS)
Insert a seal ring on the cylinder head and assemble
the injection nozzle
Measure the clearance between the cylinder head
bottom and nozzle tip. If the measured values are
beyond the limit, replace the seal ring.
SPC000006 5ton Diesel Engine
Page 62
