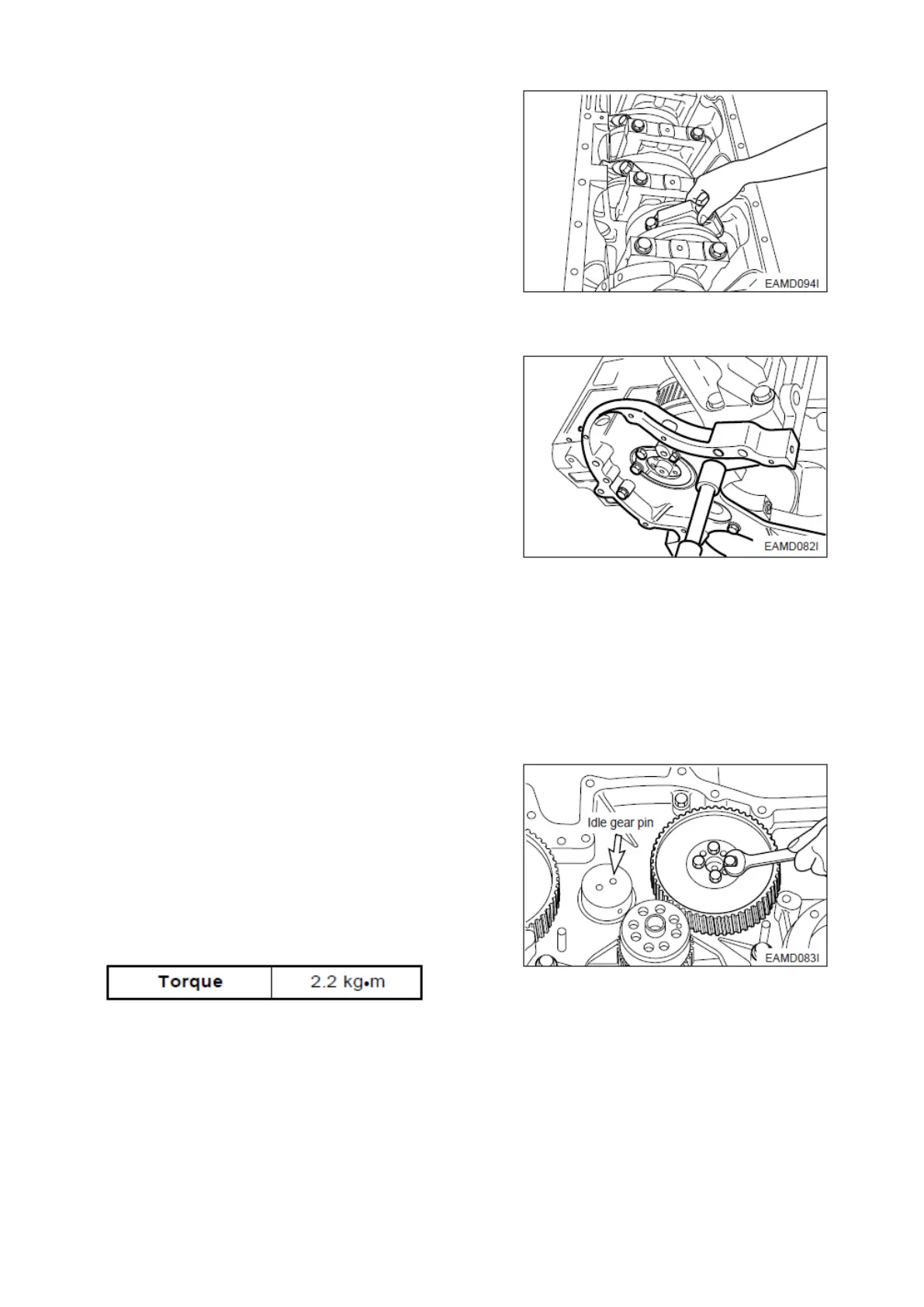

When the connecting rod bearing cap bolts are
tightened, check the connecting rod end play to the right
and left with hand. If no end play is found, remove and
reinstall or replace the connecting rod bearing cap.
3.3.13 Timing gear case
Mount a new gasket using dowel pin on the cylinder
block.
Put the time gear case to the cylinder block by aligning
the dowel pin hole of timing gear case with its pin, and
then assemble it by tapping lightly with an urethane
hammer to the right and left (Particularly around dowel
pin).
Tighten the bolts for assembling to the specified
torque. However, in case of tightening the bolts, tighten
primarily the bolts of both end parts and then do the rest.
3.3.14 Timing gear and idle gear pin
Install the oil pump idle gear onto the No.7 bearing
cap.
Install a thrust washer over the camshaft and
assemble the cam gear by aligning it with camshaft
dowel pin. Tighten the cam gear assembling bolts to the
specified torque. (Zigzag method)
