4.2 Lubricating System
4.2.1 General descriptions and specifications
General descriptions
All the engine oil pumped up from the oil pan by the gear type oil pump is filtrated through the oil cooler
and oil filter, and this filtrated oil is forced through the main oil gallery in the cylinder block from where it
is distributed to lubricate the various sliding parts, and fuel injection pump in order to ensure normal
engine performance.

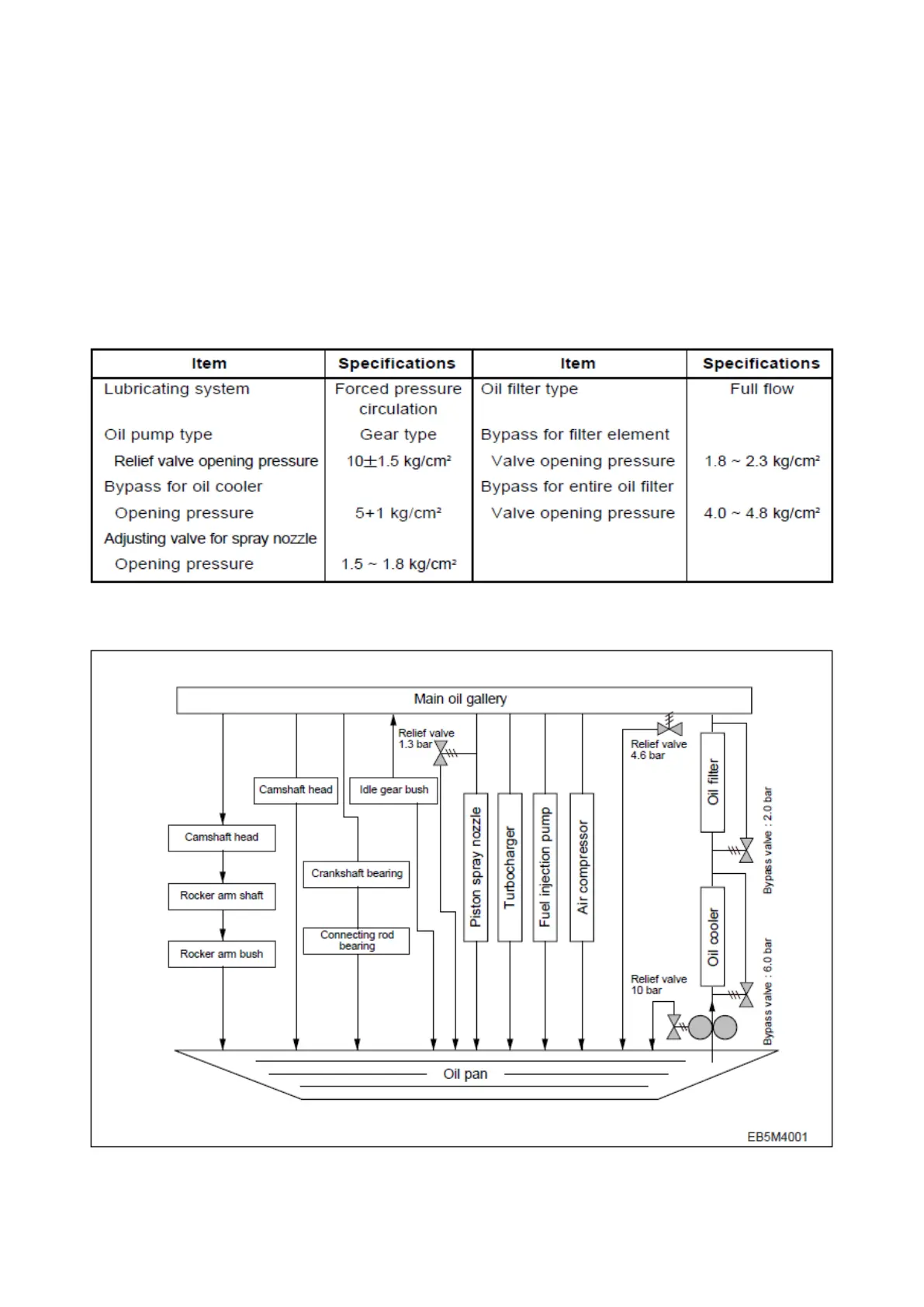

Specifications
Diagram of lubricating system
