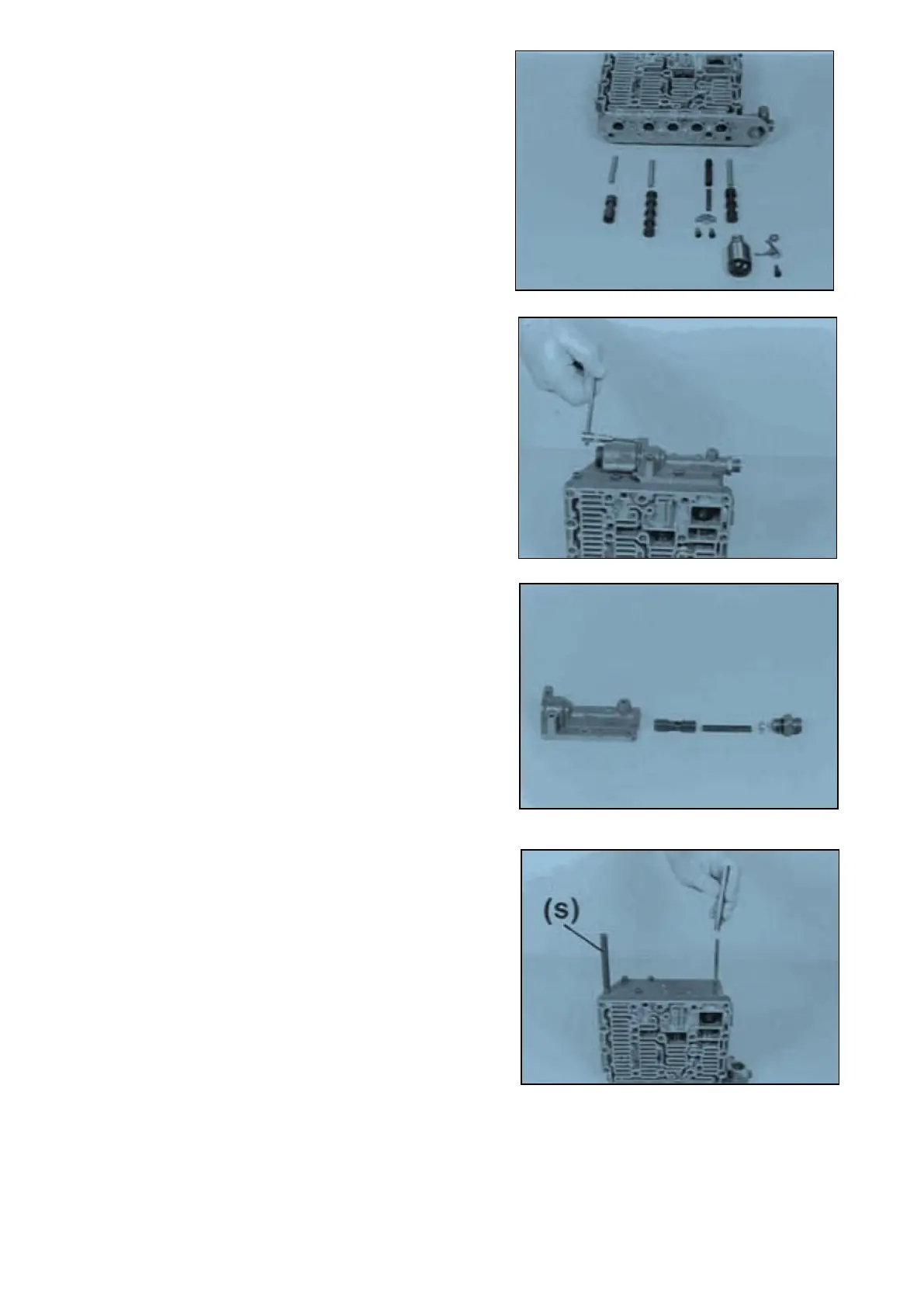

Remove components, see Figure on the right!
Remove and dismantle WK-Valve :
Loosen socket head screws and disassemble
solenoid valve.
Separate WK-Shift-control housing from the valve
body and dismantle it, see Figure on the right !
Loosen two socket head screws and fix the shift-
control housing provisionally, using a Special Tool
( S ).
Now, loosen the remaining socket head screws and
separate cover (is spring-loaded) from the valve
body by uniform loosening of the nuts ( S ).
( S ) Adjusting screws (M6) 5870 204 049
with nut
SPC000007 Transmission and Torque Converter
Page 46
