1.3.2 Version 11 : With 2-stage pressure
control valve

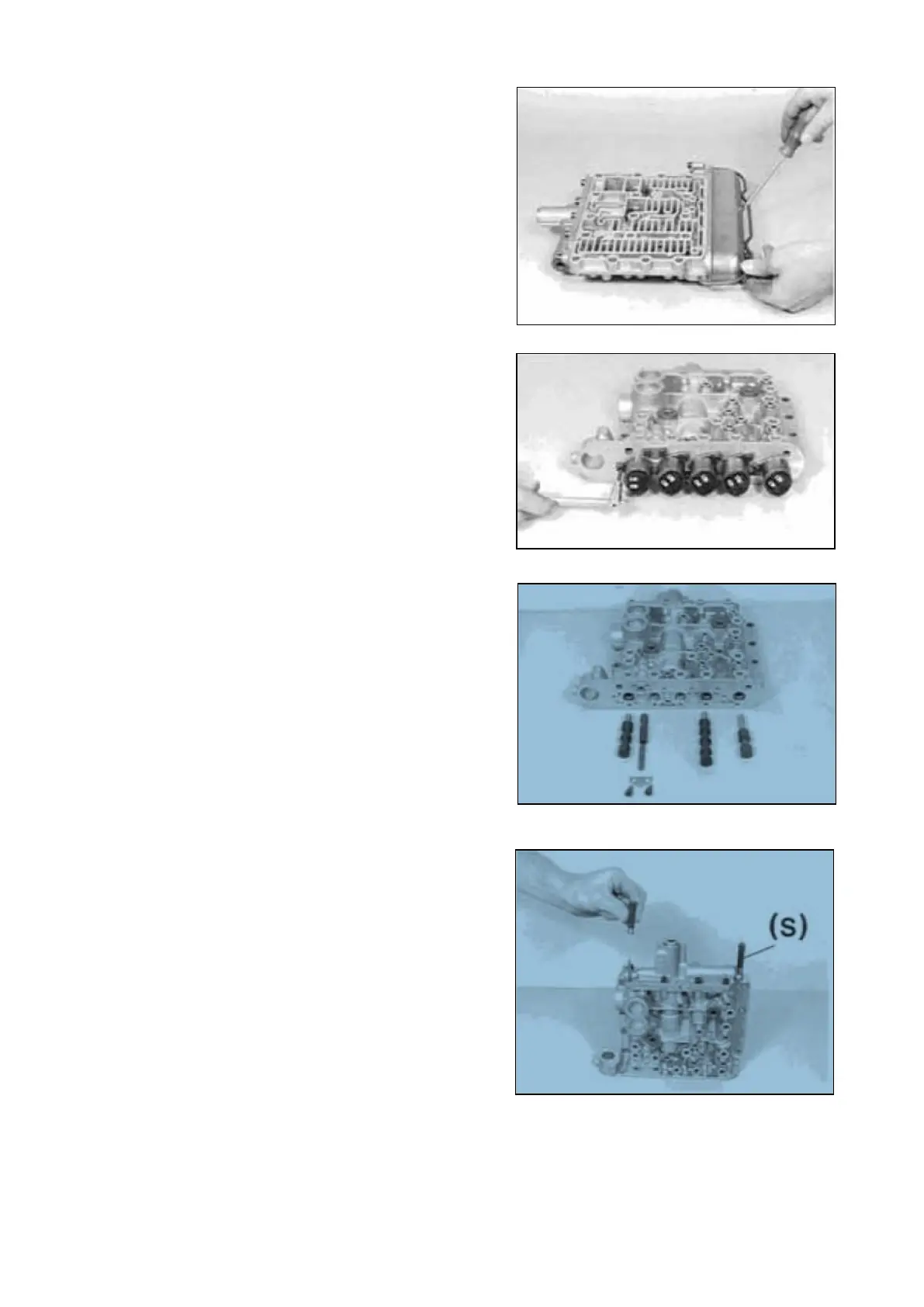

1.3.2.1 DISASSEMBLY
Relax spring clip and remove cover.
Pull off cable shoes, loosen the socket head screws
and demount solenoid valves.
Remove components, see Figure on the right.
Loosen two socket head screws and fix shiftcontrol
housing provisionally, using a Special Tool ( S ).
Now, loosen the remaining socket head screws and
separate shift-control housing (is spring loaded)
from the valve body by uniform loosening of the nuts
( S ).
( S ) Adjusting screws (M6) 5870 204 049
with nut
