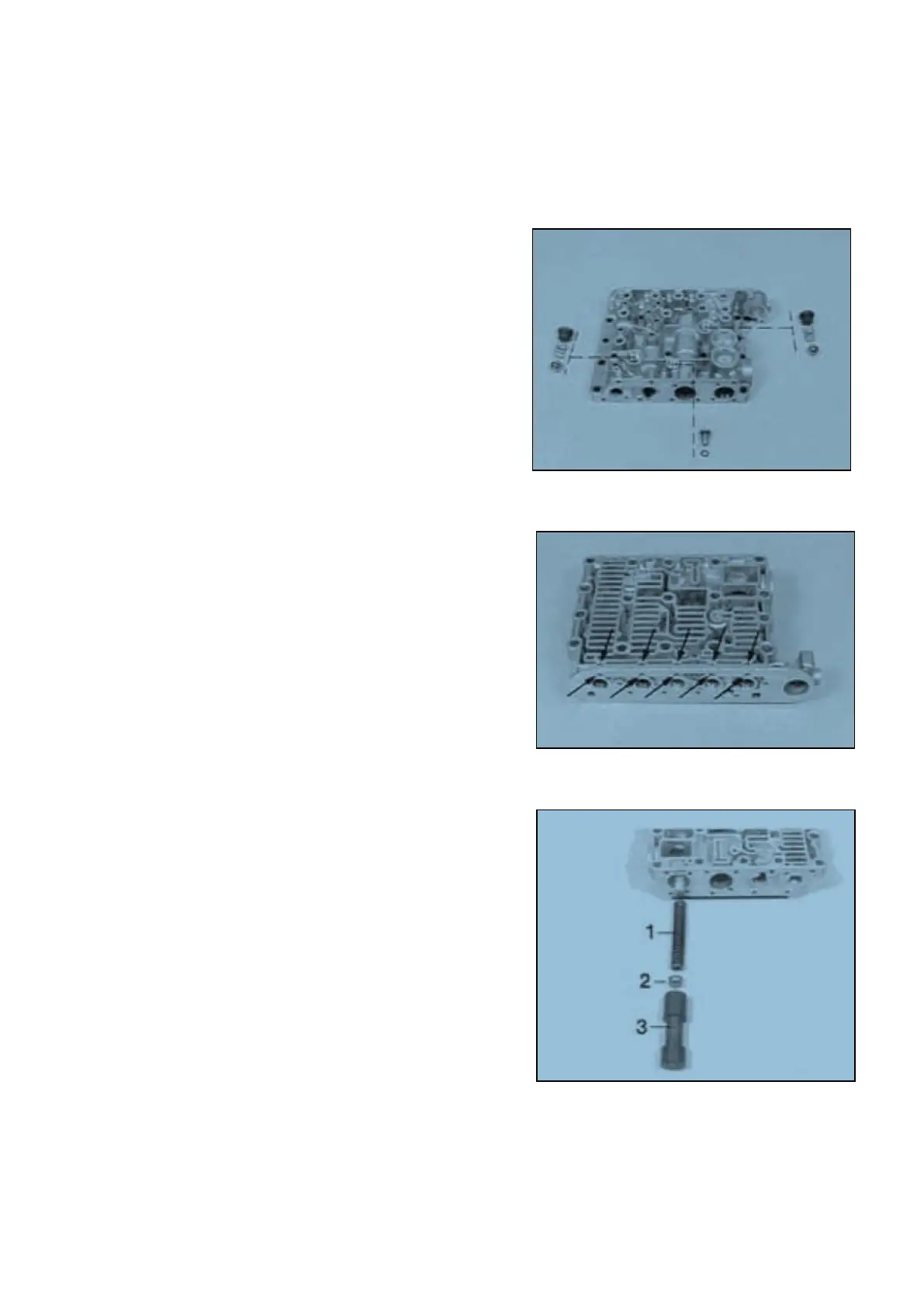

1.3.2.2 REASSEMBLY
see also Illustrated Tables, Page 63 !
NOTE :
Check all components for damage and renew if
necessary !
Check free travel of the moving parts in the housing
prior to the installation !
Spools can be exchanged individually !
Oil components prior to the reassembly !
Employ new O-Rings for all screw plugs and install
them.
Install check valves and diaphragm (optional).
NOTE ;
Mount new O-Rings !
Fasten O-Ring 6x1.5 mm (Arrow) with grease on the
end face of the diaphragm - makes the reassembly
easier !
Δ t 1 is determined by the diaphragm
(pay attention to Notes, Page 12
Torque limit :
Screw plugs Ml0x1 20 Nm
Screw plugs Ml8x1.5 35 Nm
Diaphragm 20 Nm
Close the bores by means of ball (10 pieces, Φ
4,50 mm).
Control pressure valve :
Install components.
1 = Spring (Lo = 96,20 mm)
2 = Disk(s) (optional)
3 = Spool .
ps is deter mired by the disk 2
(pay attention to Notes Page 12… 14) !
Transmission and Torque Converter SPC000007
Page 59
