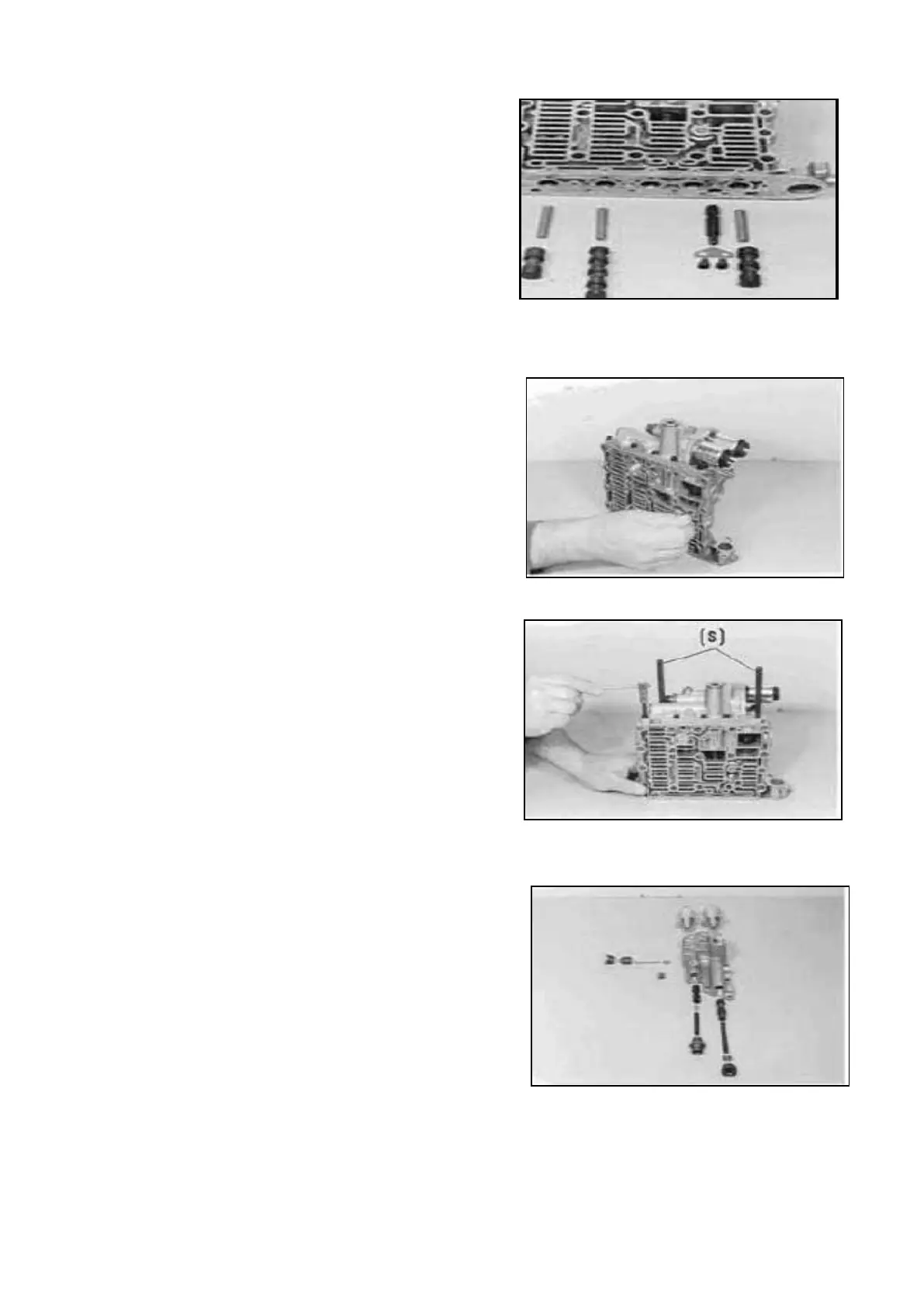

Remove components, see Figure on the right.
Loosen socket head screws and remove solenoid
valve (2-stage pressure control valve).
Loosen two socket head screws and fix shift control
housing provisionally, using a Special Tool ( S ).
Now, loosen the remaining socket head screws and
separate shift-control housing (is spring-loaded)
from the valve body by uniform loosening of the nuts
( S ).
( S ) Adjusting screws (M6) 5870 204 049
with nut
Remove components of the WK-Valve as well as of
the 2-stage pressure control valve.
Transmission and Torque Converter SPC000007
Page 65
