3.2.3 CLUTCH K4/K3

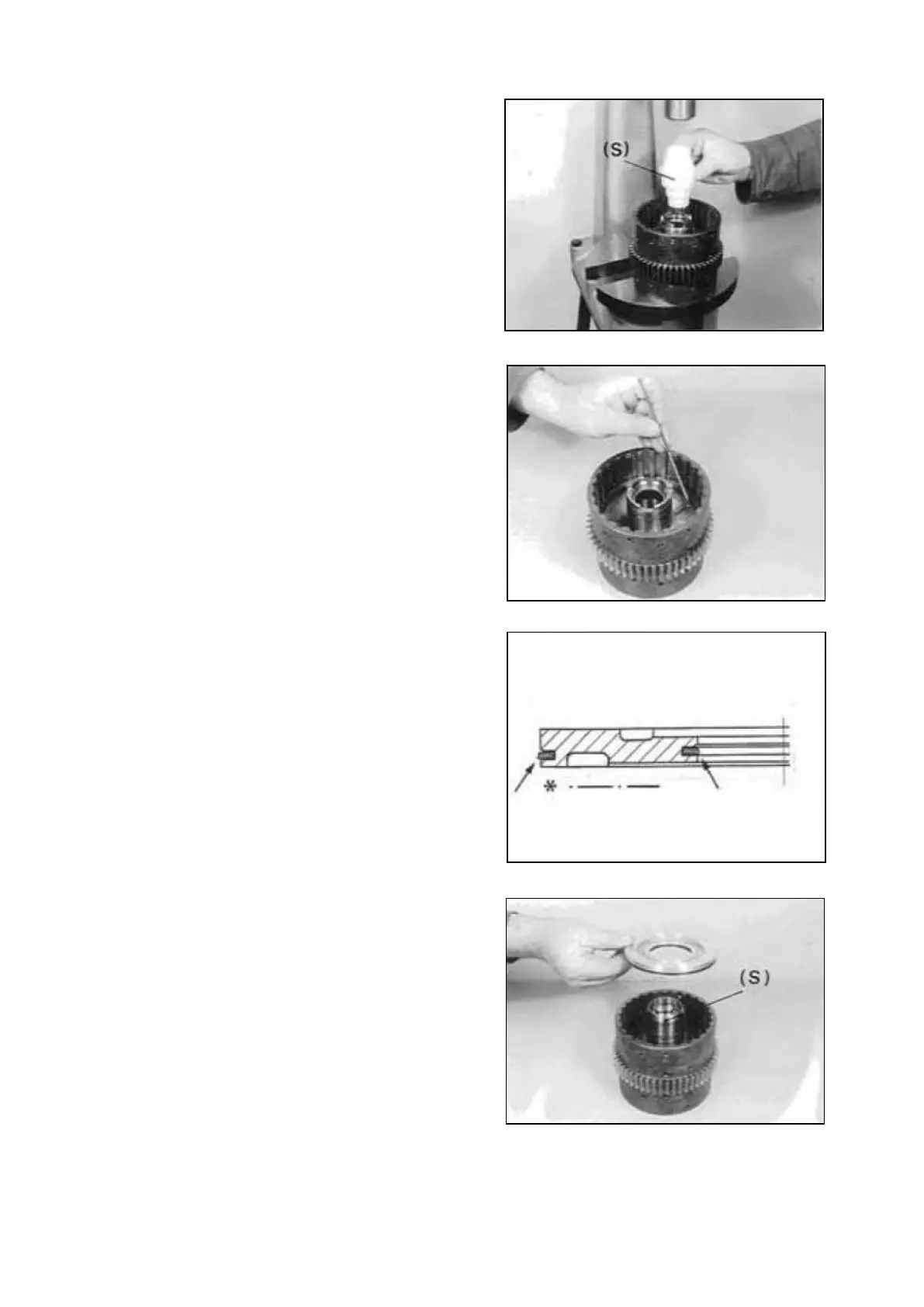

3.2.3.1 Pre-assemble plate carrier K4/K3
NOTE :
The following steps (Figure 132 ... 138) have to be
carried out on both sides of the plate carrier !
The needle bush is marked on one end face.
Press needle bush carefully against shoulder, using
drift ( S ).
NOTE :
At the pressing in, the marking must be showing
upwards (to the drift) !
( S ) Drift 5870 506 055
Check operation of the bleeder valves.
NOTE :
Ball may not stick, if necessary, clean it by means of
compressed air or renew it !
Insert the profiled sealing rings (Arrows) in the
recesses of the piston with the sealing lip facing the
pressure chamber.
NOTE ;
* - - - = Pressure side
Oil profiled sealing rings and insert piston until
contact is obtained.
NOTE ;
Use installer (s)!
( S ) Installer 5870 651 023
SPC000007 Transmission and Torque Converter
Page 116
