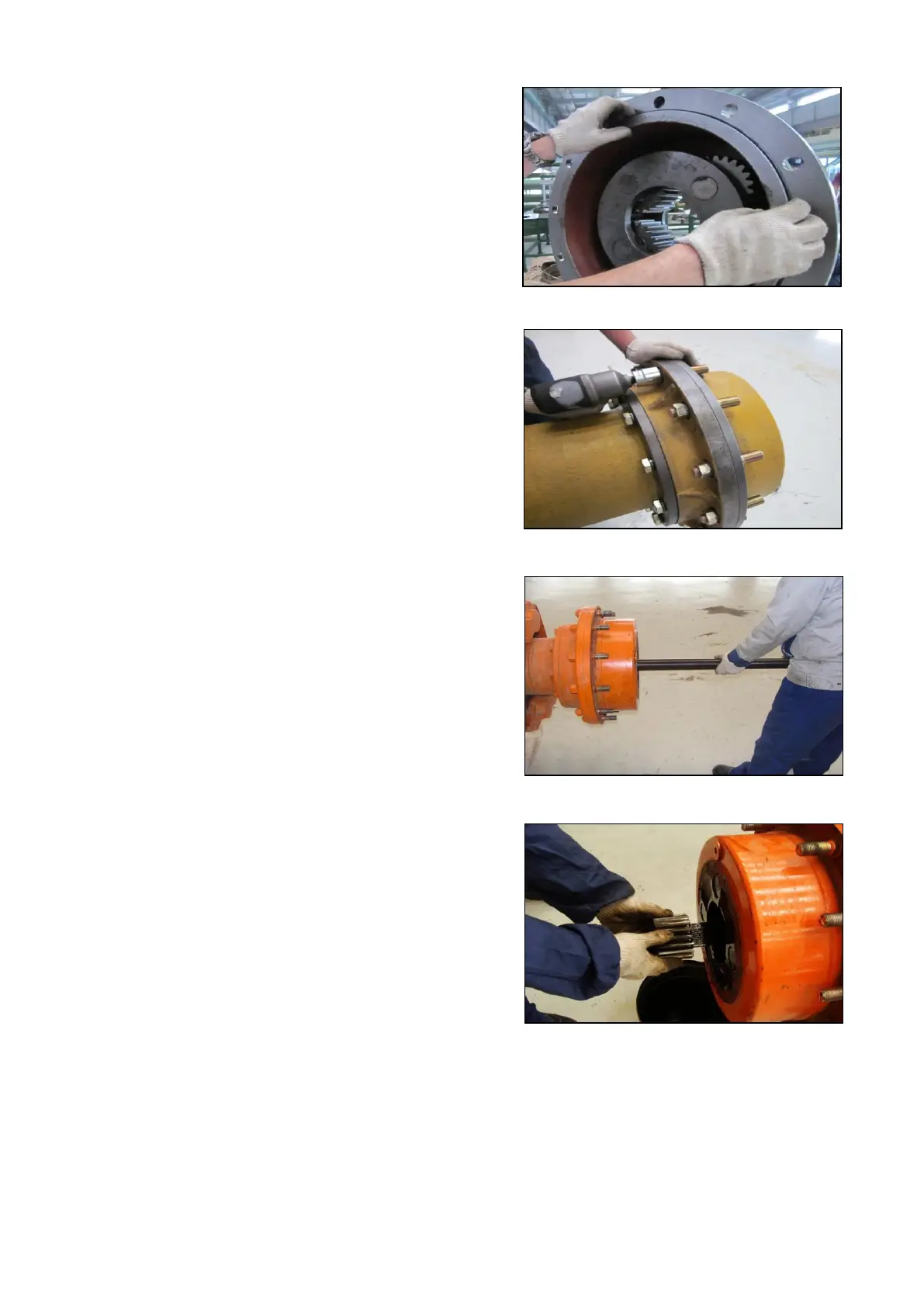

6. Assemble O sealing ring
Assemble O sealing ring on hub assemble.
7. Install planet carrier assembly
Assemble planet carrier assembly and O sealing
ring on wheel hub with rim bolts, gaskets and nuts.
Note: fastening torque
500±10Nm
8. Assemble semiaxis
Install semiaxis assembly with sun gear on hub (pay
attention to semiaxis multiple spline and gear
assembly).
9. Assemble sun gear
Assemble sun gear at one side of semiaxis with baffle
ring groove
Front Axle SPC000009
Page 29
